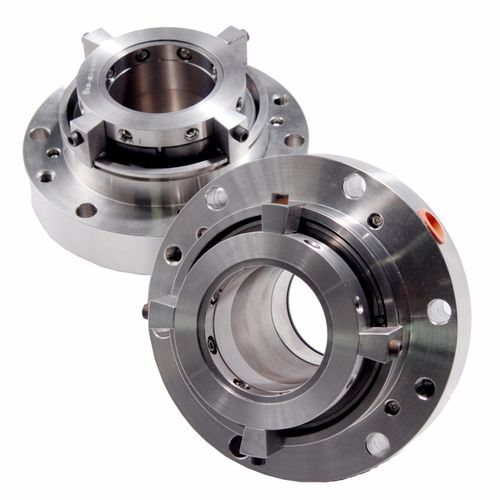

Dual-cartridge mechanical seal YTBB174-80
for sludge pumpsstainless steelchemical

dual-cartridge mechanical seal
dual-cartridge mechanical seal
dual-cartridge mechanical seal
dual-cartridge mechanical seal
Add to favorites
Compare this product


Characteristics

Type
dual-cartridge
Applications
for sludge pumps
Material
stainless steel
Domain
chemical
Operating pressure

Max.: 2,000,000 Pa
(290 psi)

Min.: 0 Pa
(0 psi)

Operating temperature

Max.: 200 °C
(392 °F)

Min.: 0 °C
(32 °F)

Description

Characteristics Other characteristics: dual-cartridge/balanced Product applications: for pumps/chemicals/slurry Operating pressure: 0~2.0MPa (0~0.29psi) Operating temperature: Min.:0℃ (0°F); Max.: 200℃ (392°F) Speed: Max.: 3000rpm Size: 18~300mm(0.7~11.8in) Materials: stainless steel/PTFE/rubber/graphite Medium: various salt solutions, molten urea, phosphoric acid slurry, the dyeing liquid, slurry, liquid medicine and soluble granules medium; pulp, fiber slurry medium. Design features: 1.Double end face mechanical seal, on-site installation is very simple. 2.Medium end of the elastic component does not contact with the media, can effectively prevent clogging impurities; friction and wear of materials with good performance for the group. 3.Both ends of the multi spring structure, short axial dimensions, medium side adopts double balanced structure, the flushing water pressure is higher than the medium pressure is the double end blocking seal, effectively prevent the medium leakage. 4.Flushing water is lower than the medium pressure for the tandem seal, can improve the level of sealing lubrication and taking friction heat. Application: Slurry Pump Centrifugal Pump Cantilever Pump, High Speed Pump, Submerged Pump, Vacuum Pump Long-term Cooperation With The Following Engine Company SULZER PUMP AND COMPRESSOR CO. JIALITE RENYUAN PUMP CO., LTD. DALIAN SHENLAN PUMP CO., LTD. SHENGYANG GERUIDE CO., LTD. HANGZHOU DALU CO., LTD. DALIAN HUANENG CO., LTD. BEIJING AEROSPACE TECHNIQUE CO. SHENGYANG WATER PUMP CO., LTD. SHENGYANG GUOTERLONG PUMP CO.
