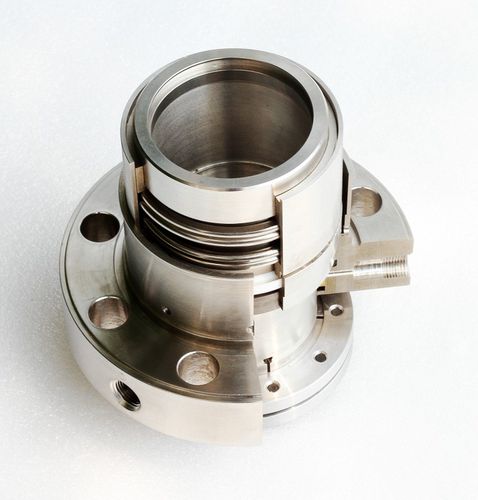

Mechanical seal with protected spring 0-15 MPa | YTB161
cartridgefor pumpsfor the pharmaceutical industry

mechanical seal with protected spring
mechanical seal with protected spring
mechanical seal with protected spring
mechanical seal with protected spring
mechanical seal with protected spring
Add to favorites
Compare this product


with protected spring, cartridge
for pumps
for the pharmaceutical industry
Other characteristics
Operating pressure

Min.: 0 Pa (0 psi)

Max.: 15,000,000 Pa (2,176 psi)

Operating temperature

Min.: -40 °C (-40 °F)

Max.: 200 °C (392 °F)


Operating Conditions: Type: high-pressure mechanical seal/with spring-protected Pressure: 0~15MPa Temperature: -40~200℃ Linear speed: less than 50m/s Shaft diameter: 40~250mm API682 planplan53B, plan53C, plan54 Media: finished oil and crude oil, such as gasoline, coal and diesel. Material: stainless steel (304, 316), rubber, graphite, carbon. Structure characteristics 1.Single face structure (API682 planPLAN11+62) 2.Double face structure (API682planplan53B、 plan53C、plan54) Competitiveness: High-performance, competitive price, prompt delivery and best service Longer service life and low energy consumption Can be customized according to customers requirement More than 20 years’ designing and manufacturing experience More than 20 years vendor of Sinopec and PetroChina Get the ISO9001, ISO14000 and ISO18000 certificate Awarded a number of utility patents in researching and designing seals Product Application: Chengdu Yitong Seal Co., Ltd. (CYT for short) is a high-tech enterprise specializing in designing and manufacturing mechanical seals, gas-lubricated mechanical seals(dry gas seals) and many kinds of sealing control systems, which are applied to rotating equipments, such as pumps, blowers, compressors and agitators (or mixers), etc. Our products have been widely applied to petroleum, chemical fiber, fertilizer, oil refining, papermaking, nuclear power, power plant, metallurgy, food, pharmaceuticals, etc. Main products are mechanical seal, dry gas seal and all kinds of seal control systems, applying to rotating equipments.
