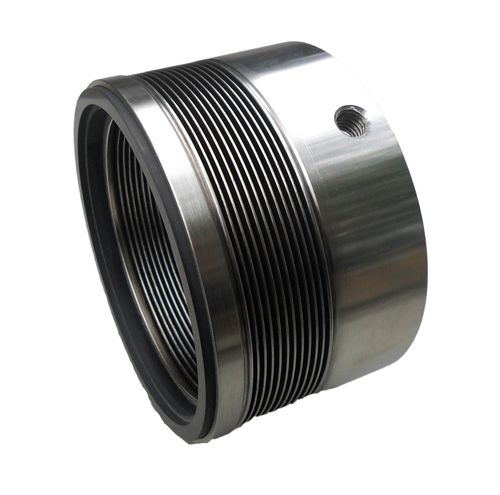

Bellows mechanical seal YTB131for pumpsfor the aeronautical industry
Add to favorites
Compare this product
Characteristics
- Type
- bellows
- Applications
- for pumps
- Domain
- for the aeronautical industry
- Operating pressure
Max.: 2,500,000 Pa
(363 psi)Min.: 0 Pa
(0 psi)- Operating temperature
Max.: 250 °C
(482 °F)Min.: -40 °C
(-40 °F)
Description
Design/Structure
1. Cartridge, single face bellows mechanical seal
2. Independent of rotation direction
3. Even end loaded
4. Bellows belongs to the stationary parts.
5. Simple structure and easy for installation
Operating Conditions
Pressure (Mpa): -0.1~2.5
Temperature (℃): -40~250
Linear speed(m/s): ≤30
Media: Chemical fluids
Material: stainless steel/ rubber/carbon/graphite
Characteristics
1. High-performance, competitive price, prompt delivery and best service
2. Longer service life and low energy consumption
3. Perfect corrosion resistance
4. Can be customized according to customers requirement
5. Production experience: more than 20 years
Product application
Metal bellows seal have been widely applied to petroleum, chemical fiber, oil refining, especially adopted in high-temperature, high-pressure, impurity particles and strong corrosive media.
Usually used in high-speed/chemical/ sanitary pump
