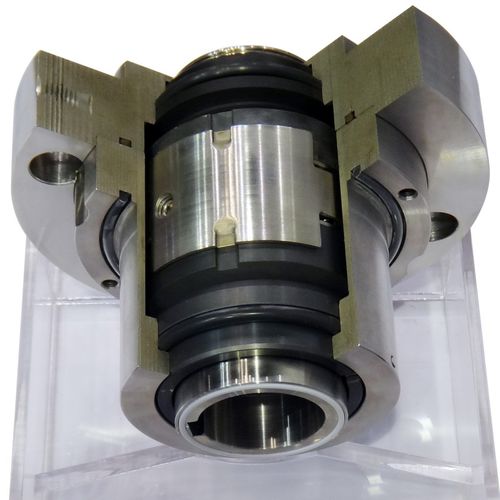

Cartridge mechanical seal YTB123
for shaftsfor the pharmaceutical industrybi-directional

cartridge mechanical seal
cartridge mechanical seal
Add to favorites
Compare this product


for shafts
for the pharmaceutical industry
Other characteristics
bi-directional, high-temperature, for chemicals
Operating pressure

Max.: 2,500,000 Pa
(363 psi)

Min.: 0 Pa
(0 psi)

Operating temperature

Max.: 200 °C
(392 °F)

Min.: -40 °C
(-40 °F)


Characteristics type: cartrige mechanical seal Other characteristics: high-temperature/bi-directional Product applications: for pumps/chemical industry/cryogenic pump Operating pressure: 0~2.5MPa (0~0.36psi) Operating temperature: Min.:-40℃ (-40°F); Max.: 200℃ (392°F) Speed: Max.: 3000rpm Size: 30~100mm(1.1~3.9in) Materials: stainless steel/graphite/rubber Design/Structure 1. Double face, even face loading 2. Balanced cartridge mechanical seal 3. Driven by the lug 4. Independent Rotating direction 5. Compensation components are preassembled for easy installation. 6. Medium: Petroleum, chemicals, LPG, weak acid and base, salt and a little particle allowed. Characteristics 1. High-performance and competitive price 2. Longer service life and low energy consumption 3. Perfect corrosion resistance 4. Can be custom-made according to customers request 5. Prompt delivery and best service 6. Production experience: more than 20 years Quality Assure 1. Get the ISO9001 certification 2. Awarded the high-tech industry 3. First level supplier of China Petroleum and China Petrochemical 4. Provide customers with a complete seal and system solution 5. Has the world-class level of dynamic pressure seal laboratory 6. Has advanced sealing design software Application Our products have been widely applied to petroleum, chemical fiber, fertilizer, oil refining, papermaking, nuclear power, power plant, metallurgy, food, pharmaceuticals, etc. Main products are mechanical seal, dry gas seal and many kinds of seal control systems, applying to rotating equipments.
