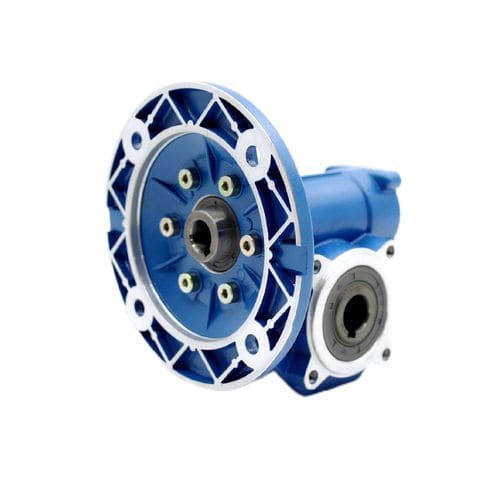

CYVF compact Worm gearboxes are approximately round box-shaped to suit space requirements where square casings cannot be installed. Smaller size and compact structure, suitable for small installation space.
Key features
• Factory outlet
• Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1,100:1
• Input shaft/hole: ∅9/11/14
• Output shaft/hole: ∅18 h6
• Die-cast aluminum alloy housing
• Worm wheel adopts high quality tin bronze
• Certification: RoHS/CE/IAF/CNAS /ISO9001/45001/14001
• Bipolar reducers: available
• Flange: round or square
• Mounting orientation: B3 B6 B7 B8 V5 V6
• Can be customized according to customer needs
• Delivery time: 7 days
• Approximate gross weight: 3 KGS
Key benefits
• Good heat dissipation
• Low temperature rise
• Low noise, smooth operation
• Long service life and more durability
• Energy saving and high efficiency
• Can be installed in any position and in all directions
• Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free
