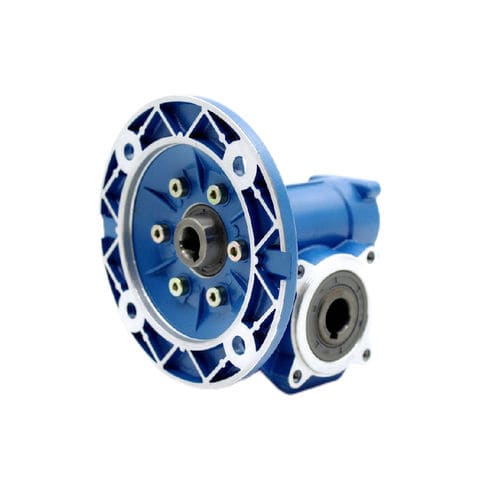

Worm gearbox CYVF050right anglesolid-shaftdual-shaft
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft, dual-shaft, multiple-output
- Torque
- 20 - 50 Nm, 50 - 100 Nm
- Number of stages
- single-stage, dual-stage
- Performance
- high-performance, low-noise, high-efficiency, maintenance-free
- Applications
- for material handling equipment, transmission, for heavy-duty applications, fan, for machinery, for conveyors, for mining applications, for industrial applications, for lifting applications, for machines, for hoist units, for marine applications, centrifuge, winch, for elevators, for milling applications, for textiles, for doors
- Other characteristics
- compact, high-quality, for pumps, for motor coupling, for grinding machines, for mixers, for the crane and lifting industry, cutting, for mixing trucks, motor
- Power
Min.: 0.12 kW
(0.16 hp)Max.: 0.75 kW
(1.02 hp)- Gear ratio
Min.: 5 unit
Max.: 100 unit
Description
CYVF compact Worm gearboxes are approximately round box-shaped to suit space requirements where square casings cannot be installed. Smaller size and compact structure, suitable for small installation space.
Key features
• Factory outlet
• Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1,100:1
• Input shaft/hole: ∅11/14/19
• Output shaft/hole: ∅25 h6
• Die-cast aluminum alloy housing
• Worm wheel adopts high quality tin bronze
• Certification: RoHS/CE/IAF/CNAS /ISO9001/45001/14001
• Bipolar reducers: available
• Flange: round or square
• Mounting orientation: B3 B6 B7 B8 V5 V6
• Can be customized according to customer needs
• Delivery time: 7 days
• Approximate gross weight: 4 KGS
Key benefits
• Good heat dissipation
• Low temperature rise
• Low noise, smooth operation
• Long service life and more durability
• Energy saving and high efficiency
• Can be installed in any position and in all directions
• Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free
