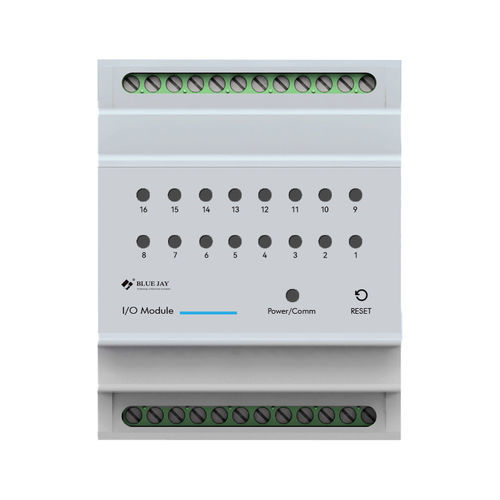

Digital I/O module IOM-CH16

RS4854-channel8-channel

The IOM-CH16 Digital I/O Module can acquire the status of 16-channel digital inputs, or 8-channel digital inputs and 4-channel relay outputs, or 12-channel high-voltage digital inputs, or 8-channel relay outputs. It also supports remote data acquisition via the RS485 communication port, using the MODBUS-RTU communication protocol. - Multiple modes: 16DI, 8DI+4DO, 12HV DI, 8DO - High-voltage input: AC/DC 90–260V - Built-in RS485, MODBUS-RTU support - AC2kV withstand, ≥100MΩ insulation - Standard 35mm DIN-rail mount - LED status indicators on panel Applications include: - Distribution automation and load monitoring - Distributed energy management systems - Production process control - Machinery manufacturing and automation equipment - Energy storage systems - Smart manufacturing and industrial applications - Marine automation control Specifications: - Power supply: 85-265VAC/DC - Power consumption: 100kΩ turns off - Optional 12* DI high voltage signal, wet contact, Input range: 90-260VAC/DC - Digital output: Optional configuration: 8* DO, normally opened - Load capacity: 5A@250VAC, 5A@30Vdc - Withstand voltage: AC 2kV / 1 min between input/output and power supply; Input and output; communication terminal and others. - Dimension: 78*90*60 mm W*H*D - Environment: Working: -15-55°C, Storage: -40-80°C - Humidity: 93%RH, no condensation, no corrosive gas - Altitude: ≤2500m
