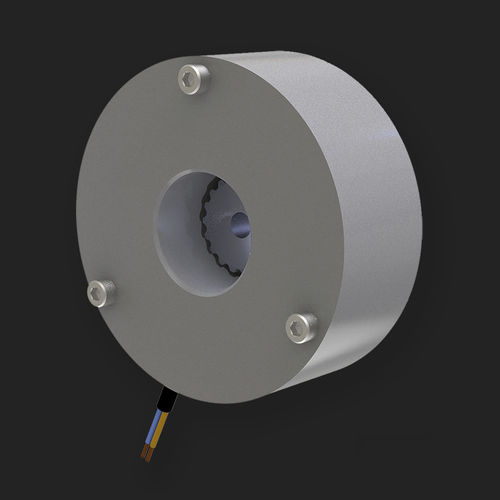

Safety brake ROBA-stop®-M Eco

discelectromagneticspring

A new version of the proven Roba-stop®-M brake is now available. The Roba-stop®-M Eco combines the robustness and reliability of the proven Roba-stop®-M while concentrating on the basic functionality of a safety brake. The slim and resource-efficient solution for series applications! Three construction sizes in two designs cover braking torques up to 32 Nm. ROBA-stop®-M safety brakes are designed for mounting on the free shaft end. They provide a secure hold and can brake moving masses or loads from moving. In the event of a power failure, in the event of a fault or if the servo brake in the drive motor fails, the ROBA-stop®-M brakes hold the axis in any position and thus prevent uncontrolled dropping or falling. This not only protects the worker from injury, but also the drive, the tools and the workpieces to be machined from damage. Product features Mounting position ✓ Mounting on the free shaft end Application ✓ Robust motor brake Duty cycle ✓ Applicable for 100 % ED Safety ✓ Safe due to fail-safe principle Benefits ✓ Short switching times Assembly and maintenance ✓ Simple assembly ✓ Low maintenance Construction - Protection class ✓ Closed brake housing ✓ Protection class IP 54
