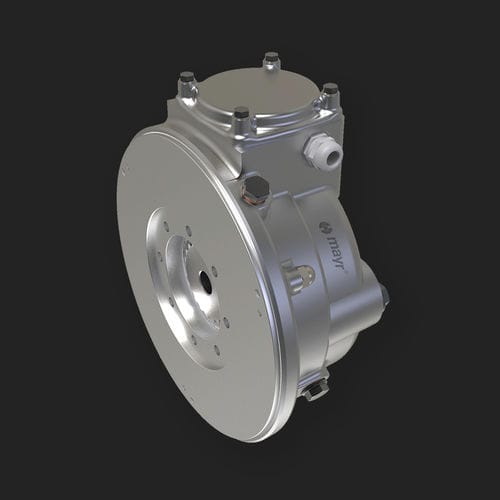

Waterproof brake ROBA-stop®-S

frictionelectromagnetic clampingspring

Waterproof, robust monobloc brake The ROBA®-stop®-S is an electromagnetic safety brake actuated by quiescent current. When de-energised, the pressure springs of the ROBA-stop®-S press against the armature disk. The rotor is held between the armature disk and the flange plate. The shaft is braked via the toothed hub. The magnetic force of the coil in the coil carrier pulls the armature disk against the coil carrier against the spring pressure. The brake is released and the shaft can pass through. Product features Application ✓ For extreme environmental conditions Mounting position ✓ Mounting on the free shaft end Safety ✓ Safe due to fail-safe principle ✓ Switching status monitoring ✓ Suitable for EMERGENCY STOP braking Benefits ✓ High permissible friction work Design ✓ Electromagnetic Features ✓ Anti-condensation heating ✓ Wear monitoring possible Construction - Protection class ✓ Closed brake housing ✓ Protection class IP 67 Assembly and maintenance ✓ Low maintenance Sound ✓ Not silenced Temperature ✓ Insulation class F Duty cycle ✓ Applicable for 100 % ED
