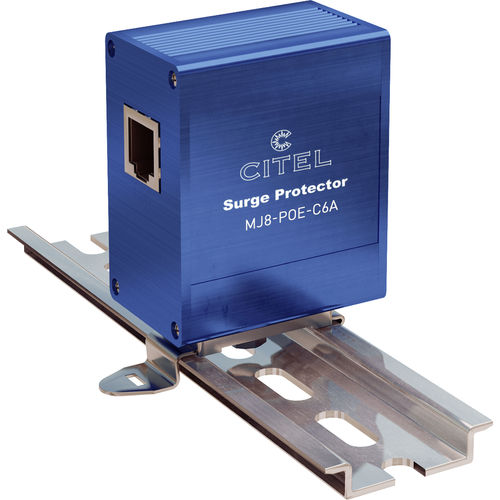

PoE surge protector MJ8-POE series

type 3for telecom networksanti-surge

POE++ compatible (IEEE 802.3bt) -10Gb (5-100m) with Cat6A S/FTP cabling Shielded RJ45 connectors Indoor applications, IP20 (NEMA 2) Metal enclosure IEC/EN 61643-21 compliant SPD categories D1, C3, C2, C1 The MJ8-POE-C6A is designed to protect sensitive data-processing equipment connected to a POE++ (Power over Ethernet) network from transient overvoltages. This SPD is qualified with the maximum transmission speed and cabling category used for these Ethernet networks: 10Gigabit Ethernet and Category 6A. Obviously, it is applicable for the Ethernet networks with lower categories. The MJ8-POE-C6A surge protector is deployed in signal network applications with data transmission speeds up to 10 GMbps. The surge protector is housed in a shielded enclosure with high quality RJ45 shielded jacks. The transient protection circuit is based on high energy gas discharge tubes (GDT) and a network of fast response silicon avalanche diodes (SAD) to achieve sharp clamping of very large surge events.
