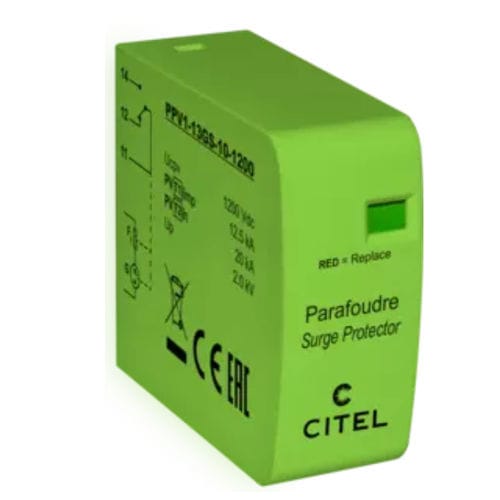

Type 1 + 2 surge protection unit PPV1 series

for photovoltaïc installationsremote signalingboard-mount

Description

• Type 1+2 surge protector for Photovoltaic installations
• PCB mounting
• Iimp: 12.5 kA (10/350 µs)
• Remote signaling
• EN 50539-11 and IEC 61643-31 compliance*

Product identity

• Name: PPV1-13GS-1200
• Part Number: 8724608

Electrical Properties
SPD type (IEC): 1+2
Max. PV operating voltage (Ucpv): 1200 Vdc
PV Permanent Operating current (Icpv) - Current consumption at Ucpv: < 0.1 mA
Nominal discharge current (In) - 15 x 8/20 µs impulses: 20 kA
Impulse current by pole (Iimp) - max. withstand 10/350 µs by pole: 12.5 kA
Current withstand short circuit PV (Iscpv): 15 000 A
Protection level @ In (8/20 µs) (Up): 2 kV
Protection level (star mounting) (+/-) / (+/PE or -/PE) @ In (8/20 µs) (Up): 4 kV


Mechanical & Functional Properties
Technology: Gas discharge tube
Connection to network: Through soldering pins
Mounting: On Printed Circuit Board
Housing material: Thermoplastic UL94 V-0
Operating temperature (Tu): -40/+85 °C
Protection rating: IP20
Disconnection indicator: Mechanical indicator
Remote signaling of disconnection: Output on changeover contact
Dimensions: See diagram
Weight: 0.033 kg


Norms and Safety
Standards compliance: IEC 61643-31 / EN 50539-11 (The standard covers devices. PPV/PAC series are components. Compliant when combined as an assembly.)


Characteristics / Technical specifications

• SPD type: 1+2
• Max. PV operating voltage (Ucpv): 1200 Vdc
• PV Permanent Operating current (Icpv): < 0.1 mA
• Nominal discharge current (In): 20 kA (15 x 8/20 µs)
• Impulse current by pole (Iimp): 12.5 kA (10/350 µs)
• Current withstand short circuit PV (Iscpv): 15 000 A
• Protection level (Up) @ In (8/20 µs): 2 kV
• Protection level (star mounting) Up: 4 kV
• Technology: Gas discharge tube
• Connection: Through soldering pins
• Mounting: On Printed Circuit Board
• Housing material: Thermoplastic UL94 V-0
• Operating temperature: -40/+85 °C
• Protection rating: IP20
• Disconnection indicator: Mechanical indicator
• Remote signaling: Output on changeover contact
• Thermal disconnector: Internal
• Back-up protection device: Without
• Weight: 0.033 kg
• Standards: IEC 61643-31 / EN 50539-11
