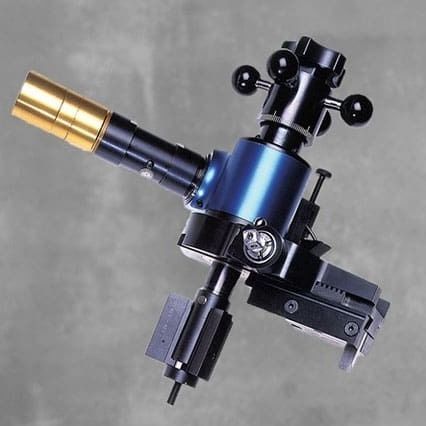

Flange facer with ID-clamping FF3000pneumaticportable
Add to favorites
Compare this product
Characteristics
- Other characteristics
- with ID-clamping, pneumatic, portable
Description
Overview
The CLIMAX FF3000 Flange Facer is a compact, versatile tool designed for fast, accurate flange facing in the field or shop. Its modular, tool-less setup minimizes downtime and enables quick adaptation to a wide range of flange configurations while delivering consistent machining results.
Performance
Equipped with a bi-directional, infinitely variable feed, the FF3000 provides precise control and superior surface finish for facing and optional beveling. The facing diameter range covers common maintenance, repair and fabrication requirements.
Key Features
Cost Benefits
SPECIFICATIONS (table)
SPECIFICATIONS — INCH — METRIC
Facing Diameter — 1.5–12 in — 38.1–304.8 mm
Milling Diameter — N/A — N/A
ID Mounting Diameter — 1.5–6.75 in — 38.1–171.5 mm
OD Mounting Diameter — N/A — N/A
Power Option — Pneumatic — Pneumatic
Technical features
The CLIMAX FF3000 Flange Facer is a compact, versatile tool designed for fast, accurate flange facing in the field or shop. Its modular, tool-less setup minimizes downtime and enables quick adaptation to a wide range of flange configurations while delivering consistent machining results.
Performance
Equipped with a bi-directional, infinitely variable feed, the FF3000 provides precise control and superior surface finish for facing and optional beveling. The facing diameter range covers common maintenance, repair and fabrication requirements.
Key Features
- Bi-directional, infinitely variable feed for precise control and improved surface finish
- Facing diameter: 1.5–12 in (38.1–304.8 mm)
- ID mounting diameter: 1.5–6.75 in (38.1–171.5 mm)
- Modular design with tool-less setup for fast changeover and reduced downtime
- Optional beveling head with Quick-Lock system for quick, repeatable changeover
- Lightweight and portable: 35 lb (15.9 kg)
- Pneumatic motor supplied with filter, lubricator and flow control
- Compact, low-profile drive engineered for high power-to-weight ratio
- Rugged main body with heavy-duty bearings and sealed lubrication
- Capable of machining both raised and flat flanges
Cost Benefits
- Reduces downtime by enabling on-site machining
- Eliminates off-site machining costs
- Reduces temporary leak-sealing procedures
- Lowers stock requirements for replacement flanges
SPECIFICATIONS (table)
SPECIFICATIONS — INCH — METRIC
Facing Diameter — 1.5–12 in — 38.1–304.8 mm
Milling Diameter — N/A — N/A
ID Mounting Diameter — 1.5–6.75 in — 38.1–171.5 mm
OD Mounting Diameter — N/A — N/A
Power Option — Pneumatic — Pneumatic
Technical features
- Model: FF3000
- Facing Diameter: 1.5–12 in (38.1–304.8 mm)
- ID Mounting Diameter: 1.5–6.75 in (38.1–171.5 mm)
- Milling Diameter / OD Mounting: N/A
- Power Option: Pneumatic (motor includes filter, lubricator and flow control)
- Feed: Bi-directional, infinitely variable
- Weight: 35 lb (15.9 kg)
- Optional Quick-Lock beveling head
- Modular, tool-less setup and rugged construction with sealed lubrication
