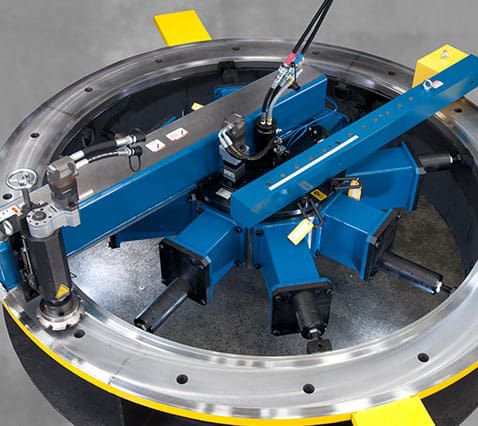

Flange facer with ID-clamping FF8200

hydraulicpneumatic

Overview The CLIMAX FF8200 flange facer is engineered for large-diameter flange facing in heavy industrial and field applications. Its rigid construction, straightforward positioning and consistent rotation deliver precise, flat finishes on oversized flanges. The machine supports ID, OD and face-mounted configurations and is suitable for power generation, oil & gas, wind tower and heavy fabrication work.

Product Advantages

• Rugged machine design: Large, heavy-duty bearings and an oversized ring gear provide high torque capacity and rigid performance across the full facing range; capable of machining over bolt-hole patterns and producing fine surface finishes.
• Flexible and versatile: Tool head rotates 360° for chamfers, O-ring grooves and angled surfaces; pneumatic feedbox enables radial and axial feeds with remotely adjustable, infinitely variable feed rates (0.002–0.035 in/rev / 0.0508–0.889 mm/rev); reversible feedbox and manual feed option for rapid positioning; optional milling with precision down-feed ball screw.
• Quick setup and field serviceability: Modular components, a removable chucking system for face-mounting and quick-adjust leveling feet simplify transport, setup and teardown.

Specifications SPECIFICATIONS | INCH | METRIC
Facing Diameter | 45 – 120 in | 1143 – 3048 mm
Milling Diameter | 45 – 120 in | 1143 – 3048 mm
ID Mounting Diameter | 45 – 120 in | 1143 – 3048 mm
OD Mounting Diameter | 89.8 – 136.4 in | 2280.9 – 3464.6 mm
Power Option | Pneumatic or Hydraulic | Pneumatic or Hydraulic

Features / Technical specifications

• Model: FF8200
• Facing and milling range: 45–120 in (1143–3048 mm)
• ID mounting range: 45–120 in (1143–3048 mm)
• OD mounting range: 89.8–136.4 in (2280.9–3464.6 mm)
• Tool head rotation: full 360°
• Feed system: remotely adjustable pneumatic feedbox; infinitely variable feed rates 0.002–0.035 in/rev (0.0508–0.889 mm/rev)
• Feed capability: radial and axial feeds; reversible feedbox; manual feed for rapid positioning
• Drive options: pneumatic or hydraulic
• Options: removable chucking system for face-mounting, milling option with precision down-feed ball screw, back-facing attachment for heat exchanger repair
• Design highlights: heavy-duty bearings, oversized ring gear, modular construction, quick-adjust leveling feet
