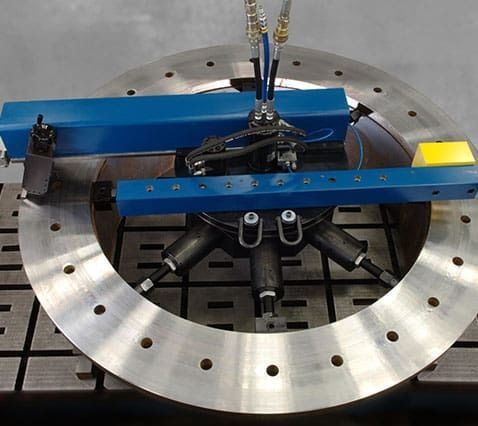

Flange facer with ID-clamping FF7200

hydraulicpneumatic

Product overview
CLIMAX FF7200 Flange Facer is a heavy‑duty flange facing and milling machine engineered for precision on large‑diameter components in industrial on‑site repairs and fabrication. It supports facing diameters 30–72 in (762–1828.8 mm) and milling diameters 35–72 in (889–1828.8 mm), and is used in refineries, power plants, shipyards and heavy fabrication.

Operator controls and versatility
The FF7200 features a 360° rotating tool head, infinitely variable feed rates and remotely adjustable feed control for safe radial and axial feed changes during operation. The chucking system is removable for face‑mounted use. Pneumatic or hydraulic drive options and optional grinding or back‑facing attachments extend on‑site capabilities.

Key features

• Facing and milling capability for large‑diameter flanges
• Facing range: 30–72 in (762–1828.8 mm)
• Milling range: 35–72 in (889–1828.8 mm)
• 360° rotating tool head for chamfers, O‑ring grooves, lens rings and angled surfaces
• Infinitely variable feed rates and remotely adjustable feed control
• Pneumatic or hydraulic power options
• Removable chucking system for face‑mount operation
• Optional grinding and back‑facing attachments
• Available for rental

Product advantages

• Rugged design: Large, heavy‑duty bearings and oversized ring gear produce high torque capacity and rigid performance across the full facing range, including over bolt‑hole patterns.
• Flexible feeds: Radial and axial feed via pneumatic feedbox; reversible mounting for radial or axial feed; manual feed for rapid positioning; infinitely variable rates from 0.002–0.035 in/rev (0.05–0.89 mm/rev).
• Quick setup: Modular construction with removable components, simplified chucking system and quick‑adjust leveling feet for fast deployment and storage.

Specifications
Facing diameter | 30–72 in | 762–1828.8 mm
Milling diameter | 35–72 in | 889–1828.8 mm
ID mounting diameter | 30–72 in | 762–1828.8 mm
OD mounting diameter | N/A | N/A
Power option | Pneumatic or Hydraulic | Pneumatic or Hydraulic

Technical specifications

• Model: FF7200
• Facing range: 30–72 in (762–1828.8 mm)
• Milling range: 35–72 in (889–1828.8 mm)
• ID mounting range: 30–72 in (762–1828.8 mm)
• OD mounting: not applicable
• Feed rates: 0.002–0.035 in/rev (0.05–0.89 mm/rev)
• 360° rotating tool head
• Optional grinding and back‑facing attachments
• Pneumatic and hydraulic drive options
