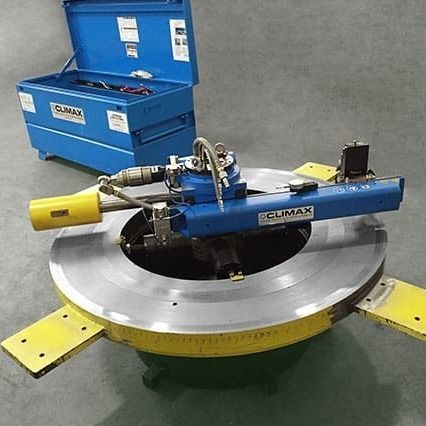

Flange facer with ID-clamping FF6300

hydraulicpneumatic

Product Overview
CLIMAX FF6300 Flange Facer combines performance, versatility and safety to deliver high-torque flange facing for demanding on-site machining. Designed to rapidly re-surface flanges and repair sealing and bearing surfaces, the FF6300 minimizes downtime while ensuring precise machining results.

Key Capabilities

• Configurable for ID, OD or surface-mount setups with quick changeover between configurations.
• Facing diameter coverage from 11.8 to 60 in (299.7–1524.0 mm) to suit a wide range of flange sizes.
• High-torque machining for demanding field operations.

Product Advantages

• Extended machining range (approx. 12–60 in / 304–1524 mm) for multi-application use.
• Variable feed-rate control for easy adjustment of cutting feed.
• Chain-clamp assembly secures OD-mount configurations without welding.
• Tool head and tool bit rotate 360° for angled machining: chamfers, O-ring grooves, lens rings and other profiles.
• Back-facing attachment option for tube-sheet and similar applications.
• Modular, lighter-weight components for improved setup, transport and storage.
• Hydraulic or pneumatic drive options for varied working conditions.

Rugged Design & Performance

• Heavy-duty bearings provide rigidity and reliable results, including when machining over bolt-hole patterns.
• Chucking system with leveling feet allows quick, accurate setup.
• Modular chuck can be mounted separately from the machine body for easier alignment.
• Worm-gear drive gives smooth operation and low backlash for interrupted cuts and higher material removal rates.

Operator Safety & Handling

• Remote on/off control of the feed system keeps operators' hands away from moving parts.
• Multiple lifting points enable balanced lifting and rigging in all orientations to simplify positioning.

Specifications (table)
SPECIFICATIONS | INCH | METRIC
ID Facing Diameter | 11.8 – 60 in | 299.7 – 1524.0 mm
Milling Diameter | N/A | N/A
ID Mounting Diameter | 11.8 – 57.5 in | 299.7 – 1460.5 mm
OD Facing Diameter | 8.5 – 60 in | 215.9 – 1524.0 mm
OD Mounting Diameter | 38.1 – 63.8 in | 967.7 – 1620.5 mm
Power Option | Pneumatic or Hydraulic | Pneumatic or Hydraulic

Technical specifications

• Model: FF6300
• ID Facing Diameter: 11.8 – 60 in (299.7 – 1524.0 mm)
• OD Facing Diameter: 8.5 – 60 in (215.9 – 1524.0 mm)
• ID Mounting Diameter: 11.8 – 57.5 in (299.7 – 1460.5 mm)
• OD Mounting Diameter: 38.1 – 63.8 in (967.7 – 1620.5 mm)
• Power Options: Pneumatic or Hydraulic
• Variable feed-rate control
• Chain-clamp assembly for OD mounting (no welding required)
• Tool head rotation 360° for angled machining (chamfers, O-ring grooves, lens rings)
• Back-facing attachment option for tube sheets
• Modular, lighter-weight components for transport and setup
• Heavy-duty bearings and worm-gear drive for low backlash and high torque
• Remote feed on/off control and multiple lifting points for safe handling
