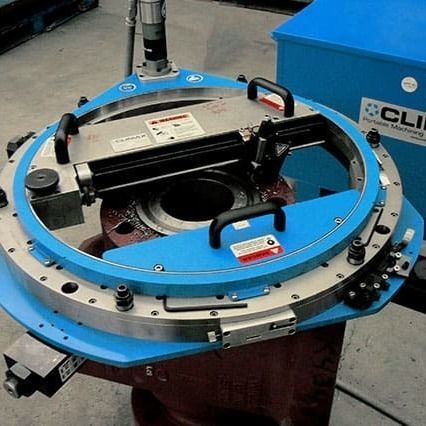

Pneumatic flange facer FF2400

automaticwith OD-clamping

Product overview
The CLIMAX FF2400 OD Mount Flange Facer machines flange faces up to 24.5 in (622.3 mm) diameter without attachments and is designed for field use in maintenance, repair and new-construction projects. It handles flat face, raised face, RTJ, tongue & groove, lens ring, Grayloc®, and compact flanges for a wide range of flange facing applications.

Design and safety

• Built for reliable operation in harsh environments with operator safety prioritized
• Remote feed controls keep operator hands clear of the cutting area
• Low-pressure safety interlock prevents unintended restarts after loss of air pressure
• E-stop for immediate stops and controlled restarts
• CE certified

Performance and versatility

• One machine machines multiple flange types without attachments: flat face, raised face, RTJ, tongue & groove, lens ring, Grayloc®, compact flanges
• Automatic and variable feed available on radial and axial feeds to reduce operating time (up to ~30%)
• Adjust feed rate while machining without stopping or reversing direction
• Tool head and tool bit rotate independently to any angle; tool head presets at 0°, 23°, -23°
• Enables higher RPM machining through safer external feed controls
• Robust chucking mechanism and unique bearing design deliver rigidity and consistent finish quality
• Smooth-running rotational drive produces high-quality surface finishes

Specifications
Facing Diameter | 0 – 24.5" | 0 – 622.3 mm
Feed Rate | 0 – 0.035 in./rev | 0 – 0.889 mm/rev
OD Mounting Diameter | 8 – 26" | 203.2 – 660.4 mm
Power Option | Pneumatic | Pneumatic

Technical features

• Model: FF2400
• Facing capacity up to 24.5" (622.3 mm) without attachments
• OD mounting range: 8 – 26" (203.2 – 660.4 mm)
• Feed rate: 0 – 0.035 in./rev (0 – 0.889 mm/rev)
• Power option: Pneumatic
• Remote feed controls and low-pressure safety interlock
• E-stop and controlled restart capability
• Machines flat face, raised face, RTJ, tongue & groove, lens ring, Grayloc®, compact flanges
• Automatic & variable feed on radial and axial feeds (time savings up to ~30%)
• Tool head rotates independently; presets at 0°, 23°, -23°
• Robust chucking and bearing design for rigidity and finish quality
• Designed for field use in harsh environments
• Rental option available
