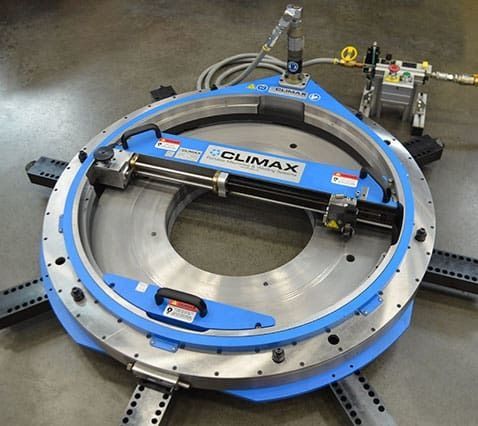

Portable flange facer FF3600

automaticwith OD-clampingpneumatic

Product Overview
The CLIMAX FF3600 OD Mount Flange Facer provides precision flange facing for demanding field machining. Capable of machining flanges up to 36.5" (927.1 mm) in diameter without attachments, the unit is portable and engineered for accurate restoration of sealing surfaces and concentricity in tight or remote locations.

Operational Features
The FF3600 includes infinitely variable feed rates adjustable while running, allowing operators precise control during machining. Standard features support radial and axial facing operations and enable efficient machining in oil & gas, power generation, shipbuilding and repair, and other field service applications.

Product Advantages

• Industry-Changing Safety: Feed control located outside the machine to eliminate reaching in; E-stop for rapid stops and controlled restarts; low pressure drop-out to prevent unintended restarts after loss of supply air; CE certified.
• Flexible and Versatile: One machine machines 7 flange types without attachments: flat face; raised face; ring type joints (RTJ); tongue & groove; lens ring; Grayloc (hub profile); compact flanges.
• Available in 3 models to machine flanges up to 12.5", 24.5" or 36.5" (317.5, 622.3 or 927.1 mm).
• Automatic & variable feed standard on radial and axial feeds for up to 30% time savings; adjust feed while machining; start/stop feed while machining to machine to a shoulder; supports higher RPM and improved surface finish.
• Tool head and tool bit rotate independently to any angle; tool head presets at 0°, 23°, and -23°.
• High Quality, Robust Design: Robust chucking mechanism and unique bearing design for superior rigidity; smooth-running rotational drive for high-quality finish; no broken shear pin on crash—reset and continue.

Specifications (table)
SPECIFICATIONS | INCH | METRIC
Facing Diameter | 0 – 36.5" | 0 – 927.1 mm
Feed Rate | 0 – 0.035 in./rev | 0 – 0.889 mm/rev
OD Mounting Diameter | 20 – 38" | 508 – 965.2 mm
Power Option | Pneumatic | Pneumatic

Technical Specifications

• Model: FF3600
• Facing Diameter: 0 – 36.5" (0 – 927.1 mm)
• Feed Rate: 0 – 0.035 in./rev (0 – 0.889 mm/rev)
• OD Mounting Diameter Range: 20 – 38" (508 – 965.2 mm)
• Power Option: Pneumatic
• Infinitely variable feed rates adjustable while running
• Tool head presets: 0°, 23°, -23°; independent rotation of tool head and tool bit
• Designed for multiple flange types: flat face, raised face, RTJ, tongue & groove, lens ring, Grayloc, compact flanges
• CE Certified; intended for oil & gas, power generation, shipbuilding/repair and other field machining applications
