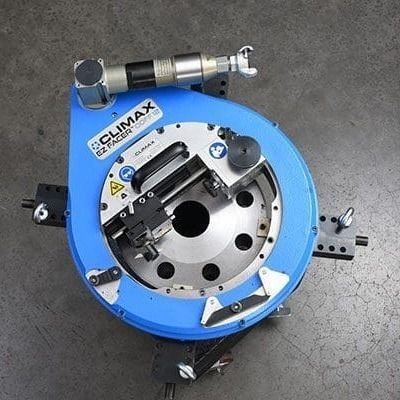

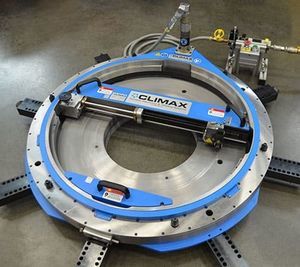

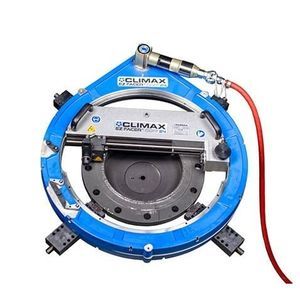

Portable flange facer EZ FACER™ ODFF12

with OD-clampingpneumatic

Product overview
The CLIMAX EZ-FACER™ ODFF12 is an OD mount flange facer designed for precision, in‑situ machining of flat-faced flanges. Pneumatically driven and portable, it resurfaces flange faces, grooves and bevels without dismantling heavy piping or process equipment. The OD mounting method provides stable alignment for critical on-site flange facing tasks.

Durability & applications
With a rugged, modular construction, the ODFF12 is built for demanding field environments. It is suitable for maintenance, turnaround and repair operations across industries where minimizing downtime and holding tight machining tolerances are required.

Product advantages

• Portable OD mount design for in-situ machining without equipment removal.
• Pneumatic drive and remote-mounted controls enable hands-free operation and improved site safety.
• Modular chuck foot mounting for rapid, flexible fixturing and repeatable alignment.
• Integrated pneumatic control unit (PCU) with adjustable speed and feed for process control.
• Supplied in a protective metal case with quick reference guide for streamlined deployment.

Key features

• Precision flatness: achievable to 0.006" (0.152 mm); surface finishes as fine as 125 Ra (range: 125–500 Ra).
• Machining capability: facing, grooving and beveling of flat flanges across a wide range of materials.
• Adjustable feed rate (listed 0–0.033"/rev; product references 0–0.032" as adjustable range) for precise radial and axial control.
• Drive: Micro V belt with 5.4:1 gear reduction; turning arm speed 5–40 rpm.
• Pneumatic input: ≈1.3 hp (1 kW); typical requirement 90 psi @ 75 CFM / 620 kPa @ 2.1 m3/min.

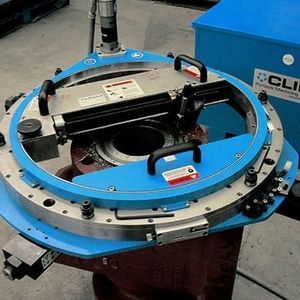

Set up & operation

• Determine chucking range and attach appropriate chuck feet.
• Mount unit to the flange OD and level/center the RDU.
• Install motor and tool slide assembly.
• Configure the PCU, set feed to zero, then gradually open speed adjuster and engage manual valve.
• Adjust feed and rotation speed to obtain the required surface finish.
• Use the emergency stop by releasing the valve handle if necessary.

Certification & compliance

• CE compliant — Machinery Directive 2006/42/EC.
• ISO 9001:2015 quality management compliance.
• Meets ASME, API and ANSI surface finish requirements.

Applications

• Resurfacing damaged or corroded flanges.
• Machining grooves or bevels on flat flanges.
• Preparing sealing faces during maintenance or shutdowns.
• In‑situ machining without equipment removal to reduce downtime.

Industries

• Oil & gas
• Petrochemical & refineries
• Shipbuilding & offshore
• Power generation
• Water treatment & utilities
• Mining & heavy industries
• Aerospace & defense (ground piping systems)

Specifications (table)
MODEL: ODFF12
Part Number: 106283
Mounting Range: 3–12.5" / 76.2–317.5 mm
Facing Diameter Range: 4–12" / 101.6–304.8 mm
Radial Tool Slide Travel: 4.4" / 111.8 mm
Axial Tool Head Travel: 2.5" / 63.5 mm
Feed Rate: 0–0.033"/rev / 0–0.838 mm/rev (adjustable)
Drive type: Micro V belt
Gear reduction: 5.4:1
Turning Arm Speed Range: 5–40 rpm
Pneumatic Power Input Requirements: 1.3 hp (1 kW) — 90 psi @ 75 CFM / 620 kPa @ 2.1 m3/min
Machine Weight: 133.2 lbs / 60.4 kg
Shipping Weight: 250 lbs / 113.4 kg
Crate Dimensions: 36.2 x 28.5 x 16" / 920 x 724 x 406 mm
HS Code: 8461.9

Technical specifications

• Model: ODFF12
• Part number: 106283
• Mounting range: 3–12.5" (76.2–317.5 mm)
• Facing diameter range: 4–12" (101.6–304.8 mm)
• Radial tool slide travel: 4.4" (111.8 mm)
• Axial tool head travel: 2.5" (63.5 mm)
• Feed rate: 0–0.033"/rev (0–0.838 mm/rev)
• Drive: Micro V belt; reduction 5.4:1
• Turning arm speed: 5–40 rpm
• Pneumatic input: ≈1 kW (1.3 hp); 90 psi @ 75 CFM / 620 kPa @ 2.1 m3/min
• Machine weight: 60.4 kg; Shipping weight: 113.4 kg
• Crate dimensions (L×W×H): 920 × 724 × 406 mm
• HS Code: 8461.9
