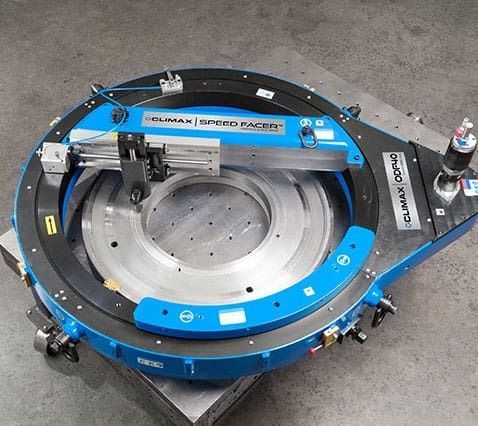

Portable flange facer SPEED FACER™ ODF30 – ODF120

with OD-clampinghydraulicpneumatic

Overview
The CLIMAX SPEED FACER™ ODF30 – ODF120 is a high-performance OD-mount flange facing machine for field use, engineered to maximize safety, speed and precision. Remote feed control and an automatic feed system enable true hands-free machining, keeping operators away from moving components while improving consistency and productivity.

Key features

• Fast deployment with customized setup fingers and leveling feet for simplified alignment — crate to cut in 15 minutes or less.
• Infinitely variable feed rates and a fully rotatable tool head with tooling that rotates 360° for flexible facing cuts, surface finishes and high metal removal rates.
• Remote feed control and automatic feed for hands-free operation and improved operator safety.

Product Advantages

• Powerful precise machining performance: Up to 3 hp pneumatic motor option; optimized drive reduction for carbide or HSS tooling; feed rates 0.001–0.032 in/rev (0.025–0.813 mm/rev); multiple feed trippers for aggressive feeds.
• Versatility and ease of use: Ten models cover flange diameters up to 120.5" (3060 mm); tool head and bit rotate 360° independently for chamfers, O-ring grooves, square shoulders and angled surfaces; back-facing attachment option; removable feed trippers and multiple mounting positions; reversible pneumatic motor; setup fingers and leveling feet for quick alignment; tool holder accepts up to 0.75 in (19.1 mm); cutting tools available on request; custom crate for shipping protection.
• Safety: Auto-feed to keep operators clear of moving parts; bearing guard to protect bearings and belt drive from chips; low-pressure safety interlock to prevent unintended restarts; E-stop for quick stops and controlled restarts; CE certified.

Specifications (table)
Model | Mounting range | Mounting range with feet extension | Facing diameter range | Motor option
ODF30 | 19.2 – 30.5" / 488 – 775 mm | 9.2 – 30.5" / 234 – 775 mm | 0 – 30.5" / 0 – 775 mm | Pneumatic or Hydraulic – Belt Drive
ODF40 | 29.2 – 40.5" / 742 – 1029 mm | 19.2 – 40.5" / 488 – 1029 mm | 0 – 40.5" / 0 – 1029 mm | Pneumatic or Hydraulic – Belt Drive
ODF50 | 39.2 – 50.5" / 996 – 1283 mm | 29.2 – 50.5" / 742 – 1283 mm | 0 – 50.5" / 0 – 1283 mm | Pneumatic or Hydraulic – Belt Drive
ODF60 | 49.2 – 60.5" / 1250 – 1537 mm | 39.2 – 60.5" / 996 – 1537 mm | 0 – 60.5" / 0 – 1537 mm | Pneumatic or Hydraulic – Belt Drive
ODF70 | 59.2 – 70.5" / 1512 – 1791 mm | 49.2 – 70.5" / 1250 – 1791 mm | 0 – 70.5" / 0 – 1791 mm | Pneumatic or Hydraulic – Belt Drive
ODF80 | 69.2 – 80.5" / 1757 – 2044 mm | 59.2 – 80.5" / 1503 – 2044 mm | 0 – 80.5" / 0 – 2044 mm | Pneumatic or Hydraulic – Belt Drive
ODF90 | 79.2 – 90.5" / 2011 – 2298 mm | 69.2 – 90.5" / 1757 – 2298 mm | 0 – 90.5" / 0 – 2298 mm | Pneumatic or Hydraulic – Belt Drive
ODF100 | 89.2 – 100.5" / 2265 – 2552 mm | 79.2 – 100.5" / 2011 – 2552 mm | 0 – 100.5" / 0 – 2552 mm | Pneumatic or Hydraulic – Belt Drive
ODF110 | 99.2 – 110.5" / 2519 – 2806 mm | 89.2 – 110.5" / 2265 – 2806 mm | 0 – 110.5" / 0 – 2806 mm | Pneumatic or Hydraulic – Belt Drive
ODF120 | 109.2 – 120.5" / 2773 – 3060 mm | 99.2 – 120.5" / 2519 – 3060 mm | 0 – 120.5" / 0 – 3060 mm | Pneumatic or Hydraulic – Belt Drive

Technical specifications

• Series name: SPEED FACER™ (OD Mount flange facers covering ODF30 through ODF120).
• Models available: ODF30, ODF40, ODF50, ODF60, ODF70, ODF80, ODF90, ODF100, ODF110, ODF120.
• Facing diameter coverage: model-dependent from 0 up to 30.5" / 775 mm (ODF30) up to 0–120.5" / 3060 mm (ODF120).
• Mounting ranges and feet extension ranges: as listed in the specifications table above.
• Motor options: Pneumatic or Hydraulic; belt drive. Up to 3 hp pneumatic motor available.
• Feed: Infinitely variable 0.001–0.032 in/rev (0.025–0.813 mm/rev); multiple feed trippers for adjustable feed unit.
• Tooling: Tool holder accepts up to 0.75 in (19.1 mm) tooling; compatible with carbide or HSS tooling.
• Tool head and tool bit: rotate 360° independently for chamfers, O-ring grooves, square shoulders and angled surfaces.
• Safety features: Auto-feed, bearing guard, low-pressure safety interlock, E-stop; CE certified.
• Quick setup: setup fingers and leveling feet permit rapid alignment; crate-ready packaging for shipping.
