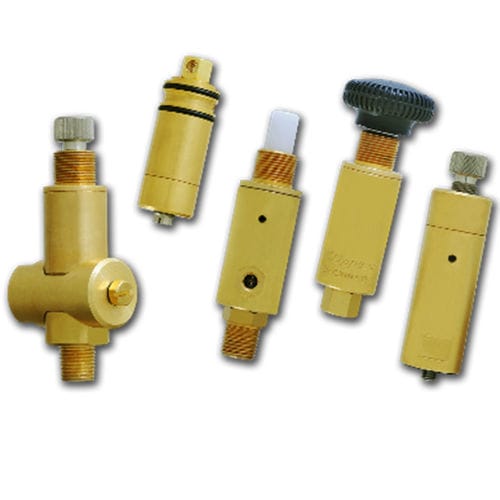

Air pressure regulator MAR-1 Series
springsingle-stagebrass

air pressure regulator
air pressure regulator
air pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for air
Technology
spring
Number of stages
single-stage
Material
brass, stainless steel
Applications
industrial
Other characteristics
miniature, rugged
Pressure

Max.: 300 psi

Min.: 10 psi

Flow

85 l/min, 140 l/min
(22.45 us gal/min, 36.98 us gal/min)

Orifice diameter

0.13 in

Temperature

Max.: 230 °F
(110 °C)

Min.: 32 °F
(0 °C)

Description

Clippards Regulators are offered in two versions, relieving and non-relieving. The relieving regulator will maintain a constant pressure output even if there is a change in the downstream condition. The non-relieving regulator is different in that it does not automatically compensate for these changes. Unlike the relieving regulator, there is no vent to atmosphere, and therefore the output pressure can rise in light of a downstream event. Both types are offered in either a brass or stainless steel alloy and have a maximum inlet pressure of 300psig.
