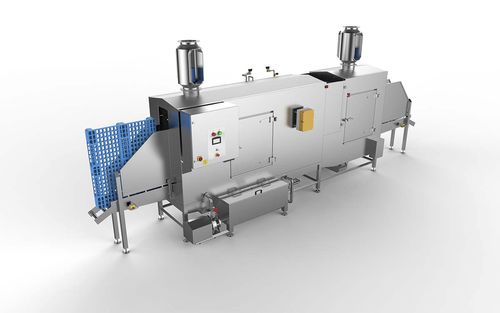

Pallet washing machine P100

watersteamimmersion

The P100 is a continuous inline pallet washing machine which offers an exceptional and efficient wash performance in cleaning plastic pallets. Our industrial pallet washer can also be supplied with a bulk water removal section, which assists in removing bulk water that is on the pallet. The soiled pallet is placed on the infeed roller conveyor of the main wash zone and is gently pushed into the wash tunnel. A stainless steel mesh conveyor transports the pallet through the wash tunnel, the speed of the conveyor can be adjusted by means of an inverter in the main control panel. Washing Process The P100 pallet washer machine has a dedicated hot water re-circulated wash tank which can be heated either electrically by immersion type heaters, alternatively it can also be heated by steam with either plate coils or steam injectors, or it can be heated by natural gas. The temperature is controlled by the HMI on the control panel which also gives indication of the machine status, faults, or any other operational information relevant to the machine. The chosen detergent is automatically dosed into the wash tank by a chemical doser, where a conductivity probe measures the concentration inside the wash tank. Water is delivered to the fixed jetting positioned 360° around the soiled pallet from a powerful high flow stainless steel head pump, filtration is done by means of standard pull out filter drawers. Rinse Cycle Various types of rinse features are available, such as an ambient temperature rinse coupled with a sanitizer chemical, an inline electrical booster heater, or a steam mixing valve.
