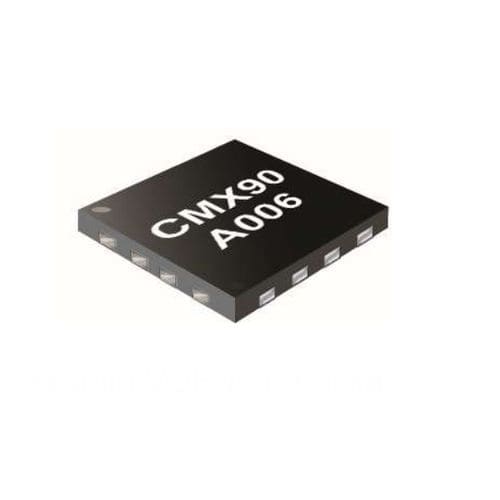

Power amplifier CMX90A006

RFlinear

The CMX90A006 is a two-stage linear RF power amplifier in QFN package, delivering +33 dBm of output power at 1 dB gain compression over the frequency range of 860 – 930 MHz, applicable to license-free bands. Operating over a wide supply voltage range of 2.5 – 5.25 V to enable system level optimization and suitable for single cell Lithium batteries. CMX90A006 is highly integrated for ease of use, reducing external component count and board space. The RF input is internally matched to 50 Ω, whilst the output match is implemented externally to optimize performance for each application. The use of InGaP HBT process technology provides excellent reliability and balance between efficiency, gain and linearity. CMX90A006 is intended as a final stage ISM band PA in wireless applications. Features P1dB +33 dBm @ 4.0 V OIP3 +42 dBm @ 26 dBm per tone RF input matched to 50 Ω Small signal gain 33 dB High PAE 52 % @ Psat' Shut-down and output power control Applications UHF RFID readers Smart meters e.g. AMR / AMI Asset tracking Wireless modules IoT / M2M SRD / ISM bands (868 / 915 MHz) Lithium battery powered systems Power Supply Requirement Supply voltage 2.5 – 5.25 V
