Power amplifier MMA-495933-M5

RFWiMAX

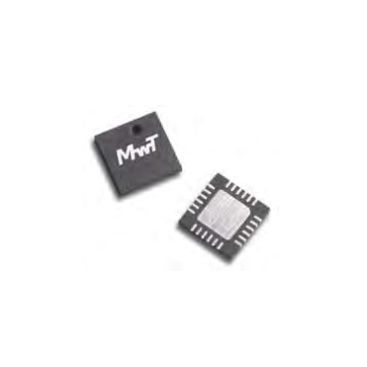

The MMA-495933-M5 is a 2.0 watt amplifier pre-matched to 50 ohm operating over frequency range 4.9 GHz to 5.9 GHz. The RF gain is 11.0 dB. The typical output IP3 is 46 dBm and P1dB is 33 dBm. The MMA-495933-M5 amplifier has excellent performance for 802.11 WLAN and 802.16 WiMax applications. At 2.0% error vector magnitude (EVM), the amplifier can achieve an average output power of 26 dBm. The MMA-495933-M5 is packaged in a quad flat no-lead (QFN) with a copper base paddle which offers excellent thermal conductance, reduced lead inductance, small size, near chip-scale footprint and thin profile. Features 46 dBm IP3 33 dBm P1dB 26 dBm Pout @ 2.0% EVM 11.0 dB Gain Input and Output Matched to 50 Ω for Easy Cascade Surface Mount QFN 5x5mm Package Applications 802.16 WiMax 802.11 WLAN Point-To-Point Radio Communications Telecomm Infrastructure
