Power amplifier MMA-174321-M4MMICGaAs
Add to favorites
Compare this product
Characteristics
- Type
- power
- Other characteristics
- GaAs, MMIC
- Voltage
Min.: 3 V
Max.: 5 V
- Current
150 mA, 250 mA, 300 mA
- Power
0.1 W
- Frequency
Min.: 17 GHz
Max.: 43 GHz
Description
The MMA-174321 is a broadband GaAs MMIC general purpose gain block for 0.1-Watt maximum output power and high gain over full 17 to 43GHz frequency range. This amplifier is able to use as 2x and 3x Frequency multipliers when biased under class-B condition for the first stage.
Features
P1dB: 18 dBm
Psat: 20 dBm
Gain: 21 dB
Input and Output Fully Matched to 50 Ω
2x and 3x Frequency multiplier applications

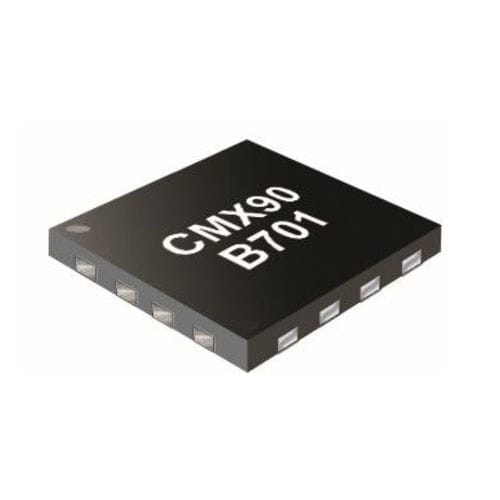

Surface Mount, RoHs Compliant QFN 4x4mm package
Applications
Communication systems
Microwave instrumentations
