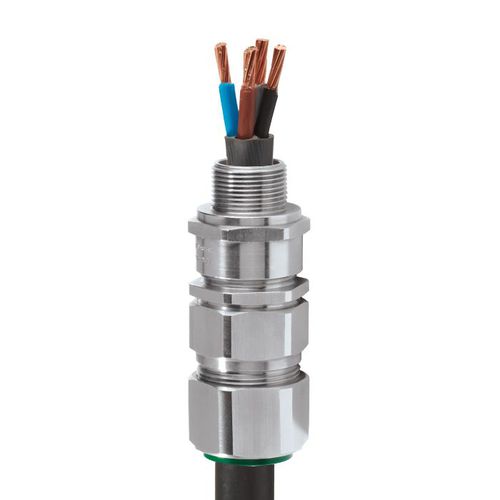

Nickel-plated brass cable gland E1FXbrassaluminiumexplosion-proof
Add to favorites
Compare this product
Characteristics
- Material
- nickel-plated brass, brass, aluminium
- Protection level
- explosion-proof, IP66, EMC-shielded, fire-resistant
- Other characteristics
- for armored cables
- Cable diameter
Max.: 123.2 mm
(4.85 in)Min.: 6.1 mm
(0.24 in)- Operating temperature
Max.: 130 °C
(266 °F)Min.: -60 °C
(-76 °F)
Description
Internationally Approved, Explosive Atmosphere Cable Gland
• Metal-to-metal armour clamping
• Direct & remote installation
• Displacement type flameproof inner seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Designed to prevent Coldflow, see CMP Technical Document TS001 (available upon request)
• -60°C to +130°C
• Class I Zone 1, 21 and Zone 2, 22 Class I Division 2 ABCD
• Globally marked, IECEx, ATEX & cCSAus
• EMC tested
