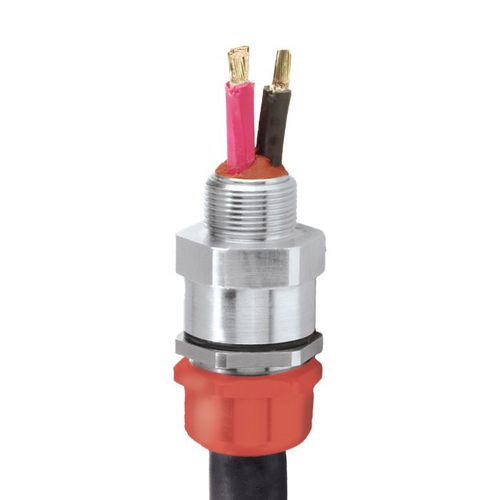

Nickel-plated brass cable gland PXSS2K
stainless steelaluminumexplosion-proof

nickel-plated brass cable gland
nickel-plated brass cable gland
nickel-plated brass cable gland
nickel-plated brass cable gland
nickel-plated brass cable gland
nickel-plated brass cable gland
Add to favorites
Compare this product


Characteristics

Material
nickel-plated brass, stainless steel, aluminum
Protection level
explosion-proof, IP68, IP66, IP67, EMC-shielded, fire-resistant, for hazardous areas
Other characteristics
double, for marine applications
Cable diameter

Min.: 3.1 mm
(0.12 in)

Max.: 90.9 mm
(3.58 in)

Operating temperature

Min.: -60 °C
(-76 °F)

Max.: 85 °C
(185 °F)

Description

Double Seal, Globally Approved, Explosive Atmosphere Barrier Cable Gland • Direct & remote installation • Superior levels of cable retention • Displacement type environmental seal • Compound barrier type flameproof seal • Designed to prevent Coldflow • Deluge protected • -60°C to +85°C • Class I Zone 1, 21 and Zone 2, 22 • Globally marked, IECEx, ATEX, UL & cCSAus
