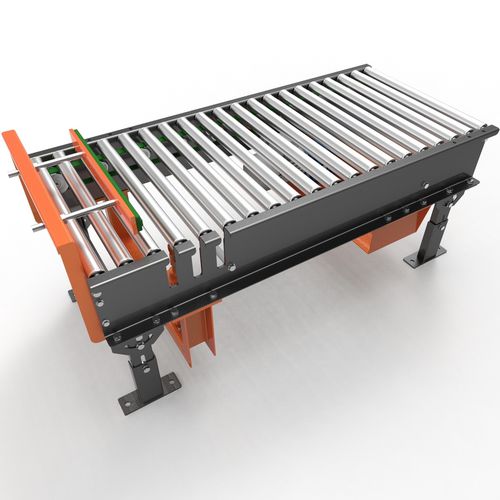

Roller conveyor R60belthorizontaltransport
Add to favorites
Compare this product
Characteristics
- Technology
- roller
- Form
- horizontal
- Function
- transport, accumulation
- Construction
- height-adjustable
- Drive mechanism
- belt-driven
- Applications
- light-duty
- Other characteristics
- stainless steel
- Speed
Max.: 40,000 mm/min
(26.25 in/s)Min.: 8,000 mm/min
(5.25 in/s)
Description
• Length: To be determined based on installation requirements
• Useful width: To be determined based on product dimensions
• Maximum load capacity: To be determined based on the width of the conveyor and the pitch between rollers.
• Ø Roller: 30,40, 50 and 60 mm
• Head: Thermoplastic / Metallic
• Ø Shaft: 10, 12, 14, 15 and 17 mm
• Flat strap
• Finish: Painted / Zinc Plated / Sandblasted
• Motorization: central or head.
For special executions consult CODIMAR
Suitable for the transport of light products.
Using this machine It is recommended when accumulation of the product to be transported is required and is of small dimensions, making a reduced pitch between rollers necessary.
