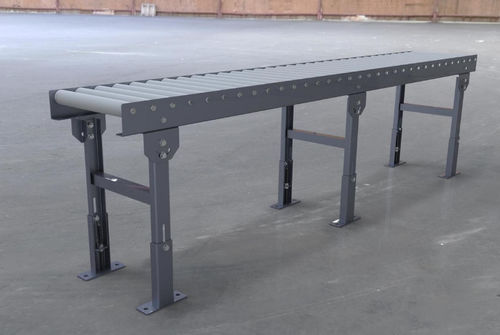

Roller conveyor G51

transportgravitybearing

Length: To be determined according to installation requirements Max length per module 3000mm Useful width: To be determined based on product dimensions Ø Rollers: 16, 20, 30, 40, 50 and 60 mm Roller material: Carbon steel / Stainless / PVC Head material: Thermoplastic / Metallic Head bearing: Precision / Stamping / Ball row Ø Shaft: 6, 8, 10, 12, 14, 15 mm Frame: Carbon Steel / Stainless Finish: Painted / Zinc Plated / Sandblasted Height adjustable leveling feet ± 50mm For special executions consult CODIMAR Oriented to the transport of light products and maintenance. Its implementation It can be in two ways: creating a slope for the product to move thanks to the force of gravity or horizontally for the operator to manually move the load. Its constructive form allows easy integration into existing or new lines.
