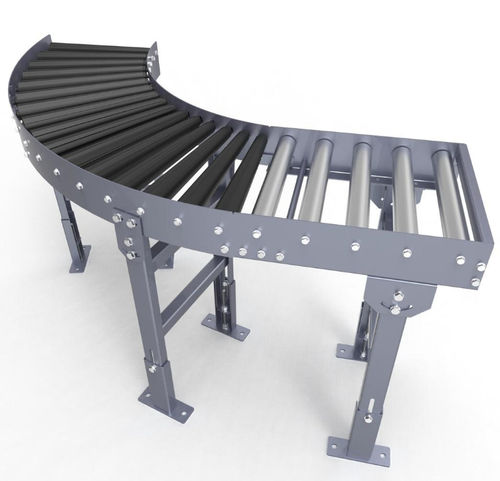

Roller conveyor G72curvedtransportbearing
Add to favorites
Compare this product
Characteristics
- Technology
- roller
- Form
- curved
- Function
- transport
- Transported product
- bearing
Description
Sectors: 30º, 45º, 90º, 180º
Useful width: To be determined by the customer
Ø Rollers: 30 and 50 mm
Inside radius: 500 and 800 mm
Roller material: Carbon steel / Stainless / PVC
Head material: Thermoplastic / Metallic
Head bearing: Precision / Stamping / Ball row
Ø Shaft: 6, 8, 10, 12, 14, 15 mm
Frame: Carbon Steel / Stainless
Finish: Painted / Zinc Plated / Sandblasted
Height adjustable leveling feet ± 50mm
Used to make address changes on transportation lines. Tapered rollers ensure that the load remains centered at all times and follows a curved path.
