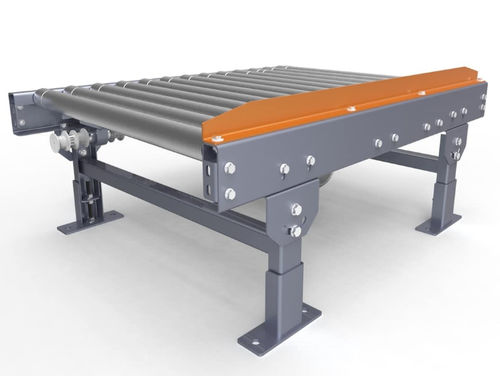

Belt conveyor R20

rollertransportcompact

Length: To be determined based on installation requirements Useful width: To be determined based on product dimensions Maximum load capacity: To be determined based on the width of the conveyor and roller pitch. Ø Roller: 50 mm Roller material: Carbon steel / Stainless / PVC Head: Thermoplastic / Metallic Pinion: Thermoplastic Ø Shaft: 10, 12, 14, 15 and 17 mm Roller Type: Fixed / Accumulation Belt: Round / Toothed / POLY-V Frame: Carbon Steel / Stainless Finish: Painted / Zinc Plated / Sandblasted Speed: 8 to 50 m / min Motorization: central or head. Height adjustable leveling feet ± 50mm Its use is focused on the transport of light products with or without accumulation. The motorization can be by means of a gear motor or with a roller motor, resulting in a more compact design in this case. Roller traction can be done by: Round strap Toothed belt POLY-V belt (allows high speeds) Noise level: low Its constructive form allows a easy integration into existing or new lines .
