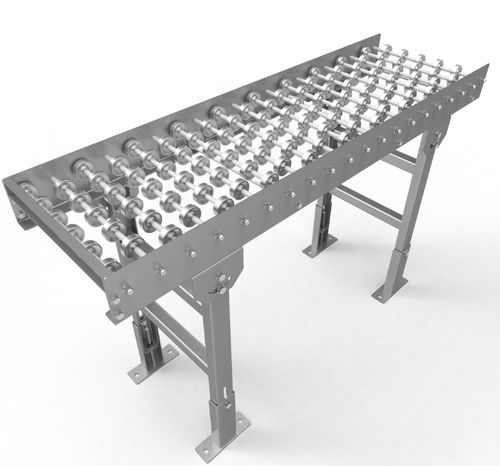

Roller conveyor G30

transportgravitymanual

Gravity Conveyors – Length: To be determined based on installation requirements – Useful width: To be determined based on the product dimensions – Frame: Carbon Steel / Stainless – Finish: Painted / Sandblasted – Height adjustable leveling feet ± 50mm – Types of sheaves: SLR roller: Body: Zinc plated steel Ball Housing: Hardened Steel Hub: Hardened and zinc plated steel Balls: Steel Load capacity: 20 kg Sheave diameter: 48 mm KLR roller: Body: Thermoplastic Hub: Thermoplastic Bearing cap: Thermoplastic Cage: Thermoplastic Balls: Carbon Steel / Stainless Load capacity: 10 kg Ø Roller: 48 mm Roller SR: Body: Thermoplastic Hub: Thermoplastic Bearing cap: Thermoplastic Cage: Thermoplastic Balls: Carbon Steel / Stainless Load capacity: 10 kg Ø Roller: 48 mm Ø Fin: 66mm For special executions consult CODIMAR Conveyor suitable for the manual transport of light loads with flat base and small dimensions. By mounting staggered sheaves, a greater bearing surface is achieved in front of the roller conveyor. Its constructive form allows easy integration into existing or new lines.
