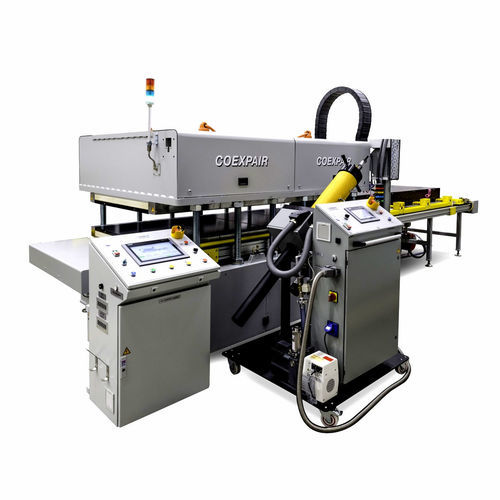

Pneumatic press RTM formingfor moldingheat transfer
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Function
- RTM forming, for molding, heat transfer
- Control
- fully-automatic, PLC-controlled
- Other characteristics
- custom, with heating plates, water-cooled
- Applications
- for production
- Force
Max.: 240 tf
Min.: 0 tf
244.7 tf
- Opening
Max.: 500 mm
(20 in)Min.: 10 mm
(0 in)- Table width
1,000 mm
(39 in)- Table length
2,400 mm
(94 in)- Max. pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)10 bar
(145 psi)- Hydraulic pump power
128 kW
Description
(SQ)RTM WORKSTATION
ELECTRICAL HEATING 128KW
Oil-free heating system
Up to 200°C
8 x 16kW heating zones controlled by PID
UNIFORM PNEUMATIC PRESSURE
2400x1000 mm²
240 Tons available
AUTOMATION READY
Master™ ready
Automatic Closing of outlet valve
Actuated tool trolley
DESCRIPTION
• Typically used for production in highly automated workshops
• Welded upper steel bolster construction
• The clamping area is 2,4m x 1m.
• Automatic Tool loading / unloading station that includes an external 2,5m rail system
