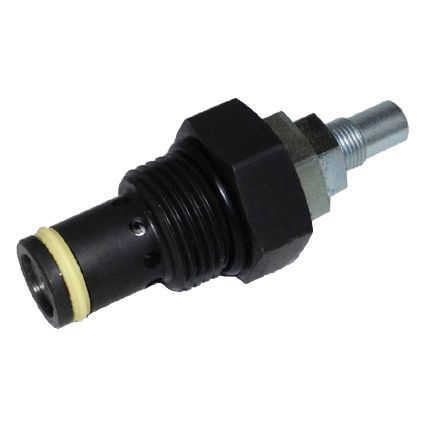

Needle valve HFCV10-RT
flow controlfor actuatorshigh-pressure

needle valve
needle valve
Add to favorites
Compare this product


Characteristics

Type
needle
Function
flow control
Applications
for actuators
Other characteristics
high-pressure, pressure-compensated, integral
Pressure

350 bar
(5,076.3 psi)

Flow rate

Max.: 11 l/min
(2.91 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Description

The HFCV10-RT is a high pressure, fully adjustable, pressure compensated, restrictive-type flow control. This valve maintains a constant flow rate out of port 2 regardless of pressure variations at port 2 or port 1. An integral check valve allows unrestricted flow from port 2 to port 1. The valve can be adjusted from closed to fully open (5 turns) with counter-clockwise rotation of the adjustment screw. Regulated flow ranges are available pre-set from the factory in 1 LPM increments between 1-11 LPM (0.26-2.9 US gal/min) and also at flows of 0.38 LPM (0.1 US gal/min) and 11.4 LPM (3.0 US gal/min). Applications The HFCV10-RT features fine adjustability and can be used for meter-in, meter-out applications to control actuator speeds.
