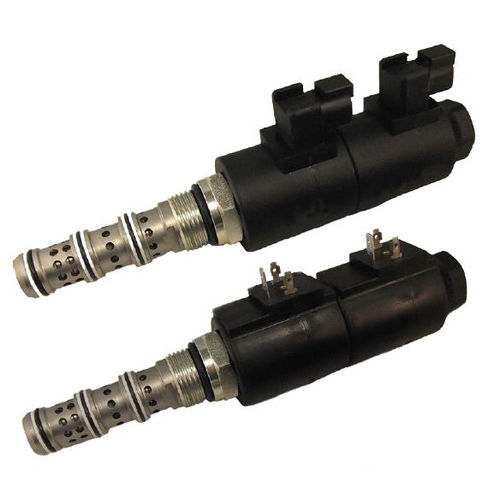

Spool hydraulic directional control valve PSV12-34-02electrically-operated4/3proportional
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- electrically-operated
- Ports/positions
- 4/3
- Other characteristics
- proportional
- Operating pressure
260 bar
(3,771 psi)- Flow rate
50 l/min
(13 us gal/min)
Description
This is a proportional, non-compensated, 3 position 4 way, directional flow control solenoid valve, with closed-center spool.
Applications
This is an electro-proportional directional control using a 3-Position, 4-Way design for directional control of hydraulic cylinders and motors. For load-independent flow control, apply with a pressure compensator, like HLE10-OPO (see Example Circuit). Port 1 should be used as the tank port, with a maximum back-pressure of 150 bar. The highest return flow coming from a cylinder should be connected to Port 2.
