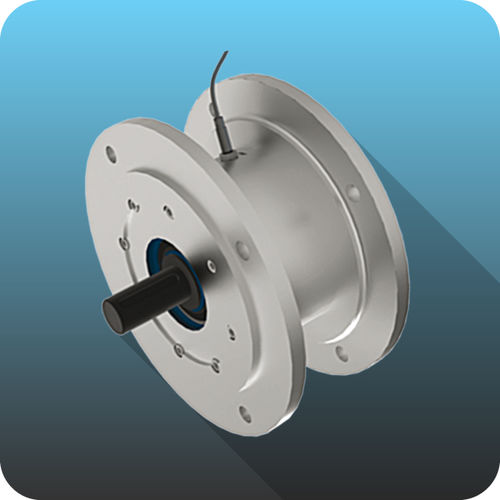

Ball bearing torque limiter PR seriesmechanicalfrictionsafety
Add to favorites
Compare this product
Characteristics
- Operation
- ball bearing, mechanical, friction
- Other characteristics
- safety, compact, backlash-free, low-inertia, steel
- Torque
Max.: 2,600 Nm
(1,917.661588 ft.lb)Min.: 2 Nm
(1.475124 ft.lb)- Diameter
65 mm
(2.56 in)- Rotational speed
Max.: 4,000 rpm
(25,132.7412 rad.min-1)Min.: 1,850 rpm
(11,623.8928 rad.min-1)
Description
Balls solution, torsional backlash free, 'DSS/F/SG/PR-V'
Balls solution, torsional backlash free in negative version, maintenance free.
Instant disengagement between driving and driven parts in the event of overload.
Available with single point (360°) engagement.
Complete solution with connecting flanges in aluminum for IEC B5 motors.
Inductive sensor integrated for monitoring the overload.
Torque range: 2-720 Nm; bore/shaft max ø48 mm.
