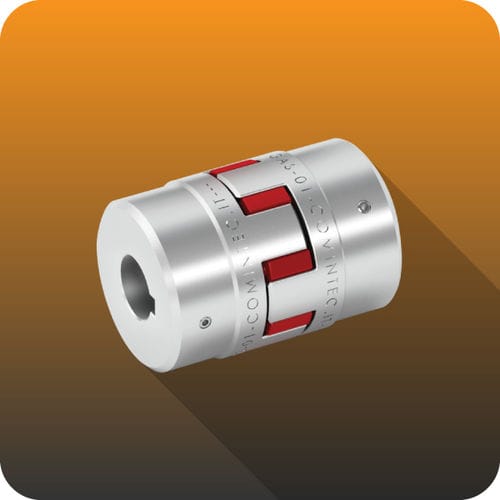

elastomer coupling / backlash-free / sleeve
GAS Series

{{requestButtons}}

Characteristics

  • Type:

    elastomer

  • Other characteristics:

    backlash-free

  • Installation system:

    sleeve

  • Torque:

    Max.: 9,600 Nm (7,080.5966 ft.lb)

    Min.: 0 Nm (0 ft.lb)

  • Rotational speed:

    Max.: 25,000 rpm (157,079.63 rad.min-1)

    Min.: 0 rpm (0 rad.min-1)

Description

Backlash free and standard jaw coupling «in alluminium» 'GAS/SG-AL e GAS-AL'

Made in aluminum fully turned.
Elastomer available in different hardness (see pages 24 and 31).
Weight and inertia reduced.
Electrical insulation between the parties.
Statically balanced.
Modular components with different locking systems on the hubs.
