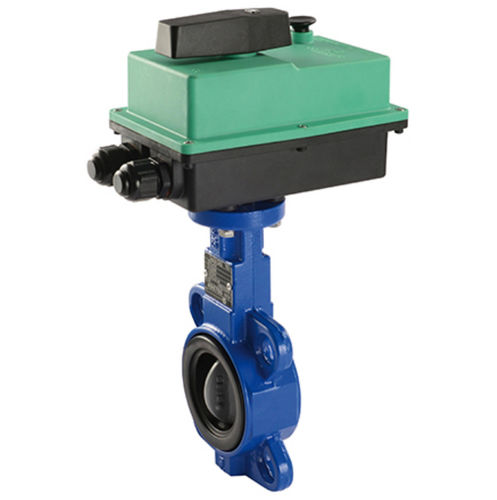

Motor-driven valve COMPACT PRO-CY2 series
butterflyelectrically-actuatedwafer

motor-driven valve
motor-driven valve
Add to favorites
Compare this product


Characteristics

Type
butterfly
Operation
electrically-actuated
Body
wafer
Applications
industrial, heating, wafer, actuator
Other characteristics
compact, emergency, motor-driven
DN

32 mm, 40 mm, 50 mm
(1.26 in, 1.575 in, 1.969 in)

Pressure

16 bar
(232.1 psi)

Description

INDUSTRIAL USE ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection Class protection: IP67 Operating time: 45 sec for 90° rotation – 22Nm Protected type, manual emergency override, 2 extra micro switches BUTTERFLY Wafer valve PN16 Body and disc in GG25, polyamide covering, seal seat: Nitrile or EPDM The COWVRÛCT PIO motorized vah/e is specifically used for the interception and régulation of fluids in: • - zone heating/cooling Systems • - glycol cooling Systems • - Systems using alternative energy • - solar Systems • - industrial Systems in general, using hot and cold fluids • - automation Systems in general • - water treatment Systems ACCESSORIES ON REQUEST • - Spacers for insulation (also with manual override) • - Anti-condensation résistance, for preventing the risk of condensation inside the actuator. • - Version without manual override from the top.
