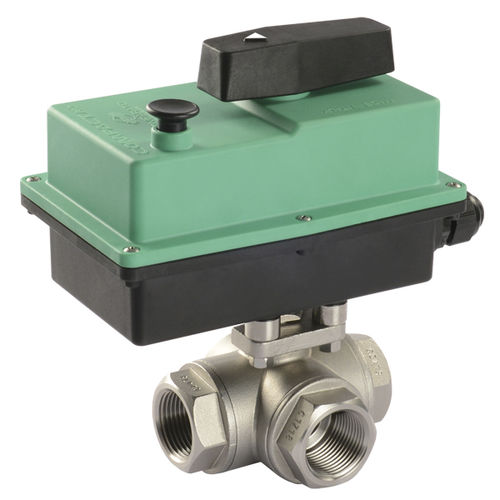

Manual valve actuator COMPACT PILOT

quarter-turnpart-turn90°

USE: INDUSTRIAL PLANTS, AUTOMATION SYSTEMS, HEATING / COOLING AND SANITARY WATER POSITIONING FEEDBACK 2-10V FAIL SAFE TWO EXTRA MICRO SWITCHES INGRESS PROTECTION: IP67 MANUAL OPENING HEATING RESISTANCE Pilot actuators use last generation stepper motors with a close control loop: a potentiometer detects the position of the output shaft of the gear unit, granting high standards of precision and reliability in terms of positioning. There are two different control types (on/off or proportional) and several operating times. They are provided with a positioning feedback 2....10V and two micro switches. Ail PILOT actuators can be provided with a heating resistance, manual override with release button and Fail Safe System: in case of power failure. the actuator automatically reaches the set safety position by using the energy stored in the integrated supercapacitors. USE • Industrial plants with hot and cold fluids • Winery • Automation Systems • Building Management Systems (BMS) • Hydraulic plants • HVAC plants • Compressed air plants
