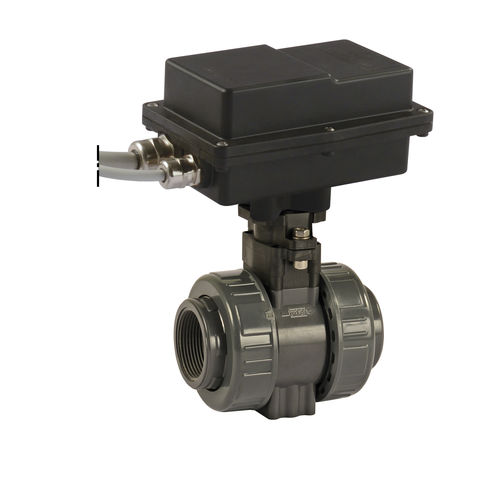

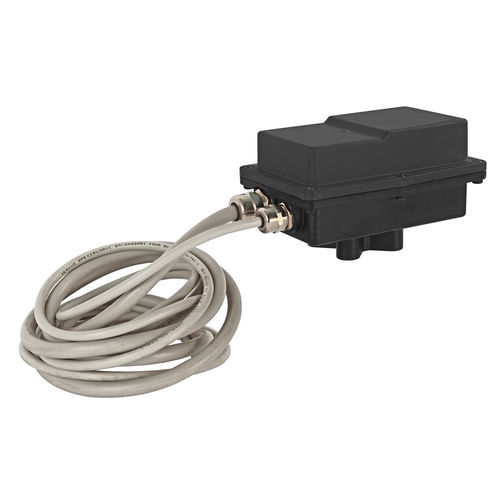

Motorized valve actuator UNIVERSAL PRO IP68
90°

motorized valve actuator
motorized valve actuator
motorized valve actuator
motorized valve actuator
motorized valve actuator
motorized valve actuator
motorized valve actuator
Add to favorites
Compare this product


Characteristics

Type
motorized
Movement
90°
Torque

40 Nm
(29.5 ft.lb)

Description

INDUSTRIAL USE ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection Class protection: IP68 – total immersion for industrial use Operating time: 55 sec for 90° rotation – 40Nm APPLICATIONS • - Under water working; • - Naval sector; • - Farming and agricultural sector; • - Alternative energy Systems: • - General automation Systems; • - Water treatment plants; • - Industrial plants. MAIN FEATURES • - Waterproof - dass protection: IP68; • - ISO 5211 connection; • - Environment température: -10°C-r50°C; • - Sealed case; • - Free voltage auxiliary microswitches; • - Supplied with cables. IP68 CODE • - No ingress of dust. complété protection against contact (dust tight); • - Suitable for continuous immersion in water (waterproof). OPTIONALS • - Different operating times and torques: standard versions are underlined in the table below • - Spacer for insulation and manual override.

Exhibitions

Meet this supplier at the following exhibition(s):

ivs

15-16 May 2024 Bergamo (Italy)

  • More information

    Other Comparato Nello S.r.l. products

    IP68 PRO Range Actuator (Waterproof) - 11 Nm / 22 Nm / 40 Nm
