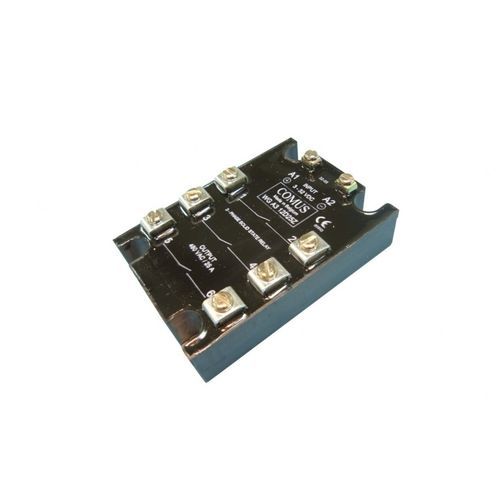

DC solid state relay WG A0
AC480VACminiature

DC solid state relay
DC solid state relay
Add to favorites
Compare this product


Characteristics

Control voltage
DC, AC, 480VAC
Features
miniature
Network
three-phase
Output voltage

Min.: 48 V

Max.: 660 V

Output current

Min.: 0.1 A

Max.: 45 A

Description

The WG A0 series is composed of solid state relays designed for electronic motor that has a reversing action of three phase system. It can load voltages up to 480Vac and currents up to 45A. Plus, an interlocking circuit is included having a changeover switching time of 60 +/-20ms. This switching time is just enough to prevent short circuits which may happen in a two phase system. Specifications Maxi Puck Housing, Panel Mounted AC Loads, DC Input, Motor Reversing This series is recommended for electronic motor reversing in three phase systems. Load voltages up to 480 Vac and load currents up to 45 A can be switched. A built-in interlocking circuit with a typical change over switching time 60 +/-20ms prevents simultaneous switching-on of forward and reverse functions and prevents a short circuit between two phases. A LED indicates the forward and reverse function.
