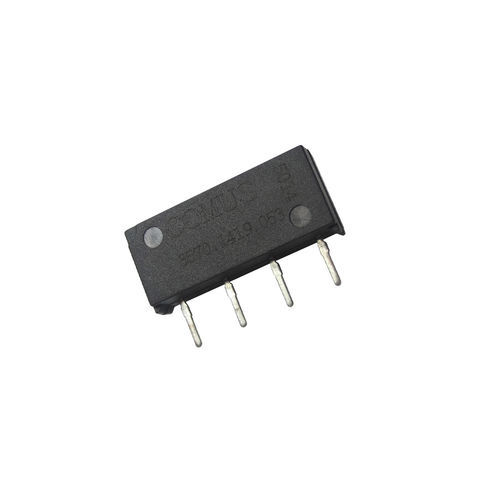

12VDC reed relay 3570.14195VDC1 Form ASIP
Add to favorites
Compare this product
Characteristics
- Control voltage
- 12VDC, 5VDC
- Contact configuration
- 1 Form A
- Features
- SIP
- Switching current
1 A
Description
• High Reliability Instrumentation Grade reed switch with sputtered Ruthenium contacts.
• 15 W Mini SIP (40% smaller than 3570-1333 series)
• Magnetic shield-reduces interaction (option).
• Coil suppression diode protects coil drive circuits (option).
• High Insulation Resistance: 1012 Ω MIN
• High board density.
• Molded thermoset industry standard package.
• Hermetically sealed contacts for long life. • UL File E358613
Catalogs
3570 1419 Series
2 Pages
