Extrusion line filler and cutting unit CPC series

Overview

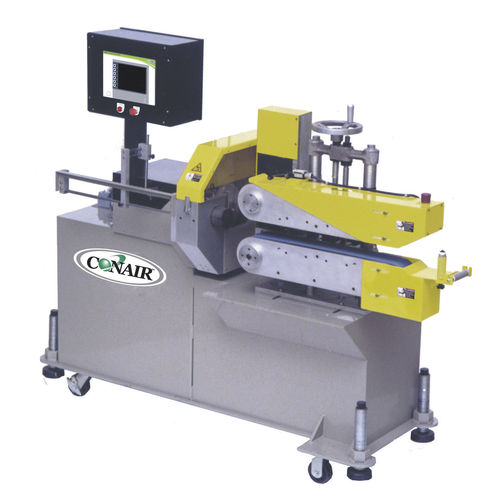

Precisely pull and cut plastic and rubber tubing, rigid tubing and profiles at precision tolerances and high cutting speeds. Combination Puller/Cutters are available with a choice of puller belt sizes, cutting capacities and pulling torque to meet specific needs. The Conair CPC provides a long tradition of industrial service, easy setup and precision operation.

Features

• Optimum eye-level monitoring – controls are at eye-level and within easy reach.
• Easy-access cutter motor – quick-remove cover for easy access to motor during maintenance.
• Visible cutter head – clear knife guard lets you view rotating cutter head and blade(s) during operation.
• Built-in cleaning – stainless steel blade lubrication tray cleans and lubricates blades with each pass; cutting chamber includes a fitting for drainage.
• Controlled extrudate grip – adjust belts and control tension by opening/closing belt gap with an easy turn.
• Centered, guided material – adjustable rollers guide material into the belts.
• Precise pulling – servo drive uniformly draws and pushes material through to the cutter.
• Upgrade option – Emerson 3.25 Hp velocity servo e-drive with ±1/100 percent set speed regulation, lower torque at lower speeds, and serial operator interface with feet-per-minute and totalizing footage counter.

In-line gearbox reducer
Lessens maintenance required by traditional belt-and-pulley designs; improves torque performance, side load capabilities and extends servo motor life.

Upper and lower belt guards
Protect the user and are easily removed when changing belts on the cutter.

Standard touchscreen features

• Full-color graphics
• Large easy-to-read display
• Selectable cutting modes, blade speed and Start/Stop functions
• Total access to servo drives for tuning and service

Frequently Asked Questions

• More torque and motor life – Conair’s in-line gear reducer improves torque while reducing maintenance. CRM and helical bevel reducers are used on the puller drive system.
• Intuitive operator control – User-friendly 10-inch (254 mm) touchscreen with high-visibility graphics, intuitive commands and a large pop-up soft keypad for fast recipe entry.
• Cutting capacity – Choose belt widths from 3 to 4 inches (76.2 to 101.6 mm) and nominal traction lengths to 26 inches (660.4 mm); capacity example cited to 3.75 inches.

Options

• Remote belt speed control with ten-turn potentiometer and digital speed display (with 100 feet of cable)
• Electronic totalizing footage counter
• Digital belt gap sensor
• Cutting torque horsepower upgrade to 4.4 Hp continuous duty positional servo controller
• Stainless steel cutter head in place of standard aluminum cutter head for additional inertia
• Second axis slide base providing unobstructed access to puller belts for non-cutting processes
• Variable blade speed in both on-demand and flywheel cut modes
• Follower cutting mode with operator-programmable cut length and blade count; controller uses encoder input to ratio cutter head to puller speed
• Electric eye and bracket for end-sense mode (designed for cutting rigid parts from 4 to 24 inches long; samples required for application and setup)
• Stainless steel cutter bushings bored to size for round product
• Blade wipe system with felt pad and lubricant bottle with sight valve
• Bushing lubrication spray system with reservoir and nozzle (connection for customer-supplied pressurized air)
• Multiple lengths and batches (up to three additional lengths with associated batch counts) for timer and encoder modes
• Host microprocessor interface connections and timer mode

Resources

• CPC Models Puller/Cutter Manual (resource listed on site)
• Full Equipment Catalog (resource listed on site)
• Full Spec Sheet: TPEX003-1025-CPC-Puller-Cutter.pdf

Technical specifications

• Model / Series: CPC Models (Combination Puller/Cutter)
• Cutting capacity cited to 3.75 inches (nominal)
• Belt widths available: 3 to 4 inches (76.2 to 101.6 mm)
• Nominal traction (pull) lengths to 26 inches (660.4 mm)
• Puller drive: servo drive (upgrade options include Emerson 3.25 Hp velocity servo e-drive)
• Optional cutting torque upgrade: 4.4 Hp continuous duty positional servo controller
• Control interface: 10-inch (254 mm) full-color touchscreen with recipe and servo tuning access
• Cutter head: standard aluminum (option for stainless steel cutter head for additional inertia)
• Blade maintenance: stainless steel blade lubrication tray with drainage fitting; blade wipe system available
• Drive reducer: in-line gearbox reducer (CRM and helical bevel reducers used on puller drive)
• Materials: suitable for plastic and rubber tubing, rigid tubing and profiles; belt options available for cutting corrugated plastic
• End-sense and length control: electric eye option for end-sense; follower cutting and timer/encoder modes for cut-to-length control
• Bushing options: stainless steel cutter bushings bored to size for round product; bushing lubrication system available
• Additional functions: remote belt speed control, electronic totalizing footage counter, digital belt gap sensor, multiple lengths/batches capability, host microprocessor interface
