Coil coiler ATC series

automaticfor extrusion lines

Overview

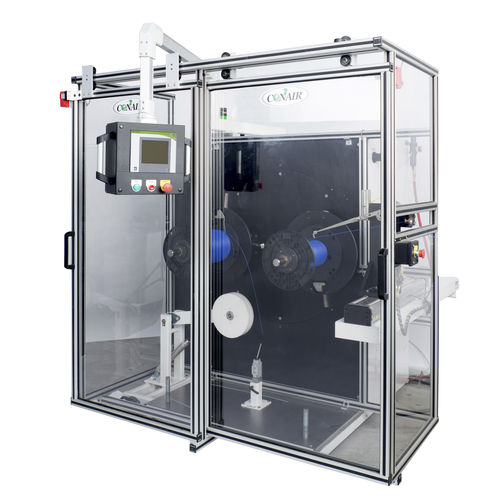

Conair’s ATC Series dual-spindle coilers perform tensionless winding of small flexible extrusions, minimizing friction and eliminating deformation. Designed for applications such as flexible tubing, medical tubing, filled cords and small flexible profiles, the ATC Series enables fully automated transfer to a new reel without operator intervention.

Key Features

• Servo-driven precision: Spindle rotation, traverse motion and spindle speed are servo controlled for accurate positioning and repeatable tension control during high-speed coiling and cut/transfer cycles. Finished spools require no manual dial-in at product changeover.
• Distortion-free coiling: Advanced control algorithms compute successive wrap diameters and adapt coil speed and traverse to tube size and puller speed, enabling sonic loop control to act as a fine-trim system for accurate, distortion-free lay. Winder ramp-up is synchronized with the production line at startup.
• Recipe storage: All operating parameters (coil speed during cut/transfer, traverse speed, turret speed and more) can be saved as recipes to reduce operator variability and ensure repeatable production.
• Fully automated cut-and-transfer: High-speed, distortion-free coiling combined with automated cut-and-transfer eliminates operator involvement during spool changes.

Options

• Spare collapsible coils for faster changeover and increased uptime.
• Custom coil adaptations to match customer-specific reel geometries.
• Medical-grade manufacturing options to comply with regulated production environments.
• Full plexiglass enclosure for enhanced safety and product protection.

Resources

• ATC Series Coiler Manual
• Ultrasonic Loop Control Spec Sheet
• Full Equipment Catalog
• Full Spec Sheet: TPEX033-0824-ATC-Series.pdf

Technical specifications

• Tensionless winding architecture to minimize friction and prevent deformation of delicate extrusions.
• Intended for small flexible extrusions: flexible tubing, medical tubing, filled cords and small flexible profiles.
• Servo-driven spindle rotation, traverse motion and spindle speed for precision control and high repeatability.
• Advanced control algorithm calculating wrap diameter and adjusting coil speed and traverse to maintain optimum tension and distortion-free lay.
• Sonic loop control used as a fine-trim device; automated ramp-up synchronized with production line at startup.
• Recipe capability storing all operating parameters for repeatable production.
• Fully automated cut-and-transfer to new reel with no operator intervention required.
• Available options: spare collapsible coils, custom coil adaptations, medical-grade manufacturing, full plexiglass enclosure.
