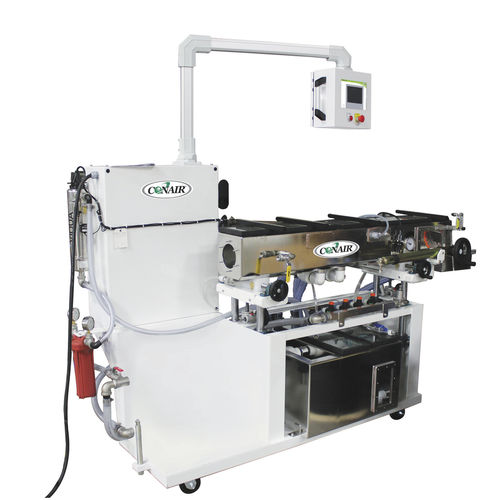

Pipe calibration tank MedLine® MedVac series

for extrusionvacuumfor profiles

Overview
MedLine® MedVac flood‑cooling vacuum sizing tanks provide precision vacuum sizing for single‑ and multilumen microbore to large‑gauge medical tubing. Designed for medical tubing manufacturers, the systems combine stainless‑steel wetted surfaces with digital controls to deliver stable, repeatable positioning and process control.

Features

• Stainless‑steel tank construction
• One‑piece telescoping drip tray for simplified cleaning and elimination of hidden seams
• Rounded tank bottom to remove corners and ease cleanout
• Hinged 1/2" (12.7 mm) tempered glass lids for visibility and reliable sealing
• Urethane swivel casters with jackscrews for secure positioning
• 3‑axis precision position adjustment for fine, vibration‑resistant alignment
• Manual 12" (305 mm) longitudinal adjustment with hand wheel for rapid linear movement to/from the die
• Swing‑arm pivoting control pod with ten‑turn potentiometer speed control and vacuum gauge; accommodates co‑extruder use without frame interference
• Painted steel frame (option for stainless‑steel frame)
• Full‑capacity stainless‑steel reservoir with easy‑access glass lids
• Variable‑speed VFAC vacuum pressure blower — high CFM at low RPM; standard operation to 130 inches water (3.3 m) with optional higher vacuum
• Stainless‑steel centrifugal water circulation pump and heat exchanger
• Quick‑change spin‑off filter
• Float valve for automatic filling and makeup
• Adjustable water level control with thermometer
• Removable free‑standing product roller assemblies for easy cleaning

Frequently Asked Questions
Cleaner interior design — Tank interior minimizes sharp corners and exposed threads to reduce bacterial and pyrogen particulate buildup. The one‑piece telescoping drip tray eliminates open seams and guide rollers are mounted on removable assemblies for thorough cleaning.

Medical‑grade filtration — Process water is isolated from the heat/cool circuit to prevent cross‑contamination. Systems can be fitted with an ultraviolet (UV) water purifier and a 5‑micron sediment pre‑filter as optional components.

Easy set‑up and operation — Narrow tank frame fits most extruders and melt pumps (including three‑layer). Three‑axis alignment with hand wheels, linear slides and ball‑screw actuators provides stable precision positioning within thousandths of an inch.

Options

• Stainless‑steel tank with painted steel frame
• Full‑length stainless‑steel splash tray under main tank
• Passivation of stainless components to reduce corrosion
• Electropolishing of primary stainless components
• Stainless‑steel plumbing package for deionized water (medical applications)
• Mounting provision for customer‑supplied ultrasonic wall unit in first 18" (457 mm) of vacuum chamber with water connections and de‑bubbling unit
• PAVC+ Ethernet or analog interface and temperature control
• Ultraviolet (UV) water treatment unit
• Filter housing with 5‑micron cartridge
• Increased vacuum capability option up to 200 inches water
• UL certification (optional)

Resources

• MedVac Tanks Manual (product resource)
• Full Equipment Catalog
• Full spec sheet / downloadable product specification

Characteristics / Technical specifications

• Product family/series: MedLine® MedVac
• Application: Flood‑cooling vacuum sizing for medical tubing (microbore to large‑gauge)
• Tank material: Stainless steel (electropolish and passivation options)
• Tank lids: Hinged 1/2" (12.7 mm) tempered glass
• Positioning: 3‑axis precision alignment; manual 12" (305 mm) longitudinal hand‑wheel adjustment
• Control pod: Swing‑arm pivoting pod with ten‑turn potentiometer and vacuum gauge
• Blower: Variable‑speed VFAC vacuum pressure blower; standard to 130 inches water (3.3 m); optional to 200 inches water
• Circulation: Stainless‑steel centrifugal pump and heat exchanger
• Filtration: Quick‑change spin‑off filter; optional 5‑micron pre‑filter; optional UV purifier
• Water level: Float valve for automatic fill and adjustable level control with thermometer
• Cleaning features: Rounded bottom, one‑piece telescoping drip tray, removable roller assemblies
• Mobility: Urethane swivel casters with jackscrews
• Frame: Painted steel (stainless‑steel frame optional)
• Interfaces/controls: PAVC+ Ethernet or analog interface and temperature control (option)
• Certifications: UL available (option)
