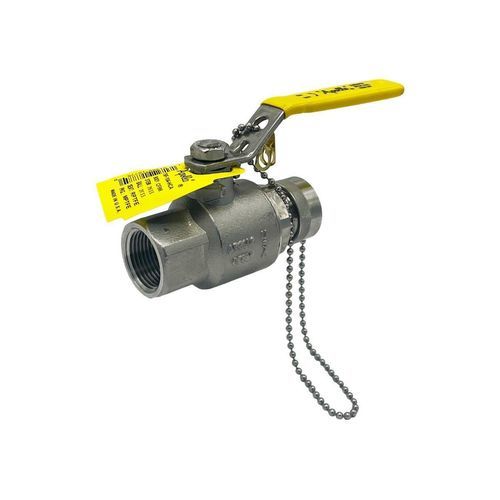

Ball valve 76F10XHCA

leverfor potable waterfor steam

Product name
Apollo 2 Piece Full Port Stainless Steel Ball Valve - Hose Cap

Group
group: 76F10XHCA

Manufacturer
Aalberts integrated piping systems Americas, Inc. (Apollo)

Applications

• potable water
• vacuum
• steam

Segments

• utility

Approvals

• NSF
• CSA B356
• CRN

Assortment
Item code | Size | Dimensions | Weight | Packaging | GTIN + UPC
76F103HCA | 1/2" | 5.24x1.61x2.76 " | 0.57 lb | Carton (1 pce) | 00191988191375
76F104HCA | 3/4" | 5.24x1.61x2.76 " | 0.91 lb | Carton (1 pce) | 00191988187750
76F105HCA | 1" | 5.24x1.61x2.76 " | 1.38 lb | Carton (1 pce) | 00191988188160

Dimensions (selected items)
Header: item code | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 | M1 | M2 | E | Y | V | U | D1
76F103HCA | 1/2" | 1.06 | - | 1.41 | 1.05 | 0.84 | - | 1.14 | 0.56 | 0.37 | 4.17 | 0.68 | 0.86 | 1.09 | 0.75 | 1.15
76F104HCA | 3/4" | 1.06 | - | 1.81 | 1.45 | 1.05 | - | 1.39 | 0.71 | 0.38 | 4.17 | 0.68 | 0.86 | 1.31 | 0.75 | 1.36
76F105HCA | 1" | 1.06 | - | 2.06 | 1.70 | 1.32 | - | 1.67 | 0.88 | 0.40 | 5.29 | 0.81 | 0.92 | 1.61 | 0.88 | 1.68

Product Info
article: Apollo 2 Piece Full Port Stainless Steel Ball Valve - Hose Cap
article number with gtin: 76F10XHCA
manufacturer: Aalberts integrated piping systems Americas, Inc. (Apollo)
weight: 1.38 lb
dimensions: 5.24x1.61x2.76 "

Characteristics
color: silver
materials: stainless steel (ASTM A351 CF8M)
finishing: none
shape: straight
connection type: FPT - female thread conical (NPT), hose connector
Bore: 25.4 mm (Yes)

Technical
max operating pressure liquid: 1000 psi

General
product group: valves (ball valves)
ETIM class: EC011343 Ball valve
country of origin: United States
brand: Apollo
series: 76F Series Ball Valves
product type: 76F10XHCA
unsps: 40141607

caractéristiques / spécifications techniques

• Type: 2-piece full bore ball valve with hose cap
• Material housing: Stainless steel (ASTM A351 CF8M)
• Ball material: Stainless steel
• Spindle material: Stainless steel
• Primary spindle seal: PTFE
• Connection 1: Internal thread conical (NPT) — FPT type
• Connection 2: Hose pillar (hose connector)
• With coupling connections: No (both connections: No)
• Full bore: Yes
• Max operating pressure (liquid): 1000 psi
• Country of origin: United States
• Typical packaging: Carton (1 pce)
