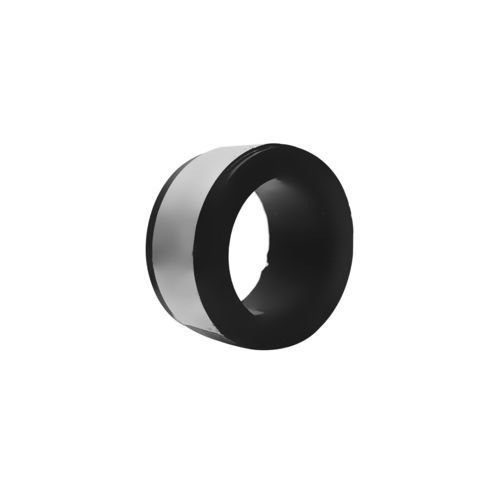

Brushless motor BS5016NFLDCBLDC48 V
Add to favorites
Compare this product
Characteristics
- Type
- DC, brushless, BLDC
- Voltage
- 48 V
- Applications
- for robotics, for collaborative robots, for humanoid robot
- Other characteristics
- custom
- Power
0.22 kW
(0.3 hp)- Intensity
Max.: 19.2 A
Min.: 0.15 A
3.1 A
- Torque
0.5 Nm
(0.368781 ft.lb)- Rotational speed
2,880 rpm
(18,095.5737 rad.min-1)- Diameter
50 mm
(1.97 in)
Description
Product overview
Applications
Customizable options
Pricing
Unit price: Quotation based on order quantity and technical requirements. Contact sales for a tailored offer.
Technical parameters
Specifications
- Brushless DC motor BS5016NFL
- Diameter: 50 mm; Length: 23.5 mm
- Rated voltage: 48 V; Max. output power: 223 W; No-load speed: 2880 rpm
Applications
- Collaborative robots
- Mechanical arms
- Humanoid robots
Customizable options
- Electrical specifications (winding, voltage)
- Wire length and connector type
- Performance tuning (speed/torque curves)
- Integration with gearboxes
Pricing
Unit price: Quotation based on order quantity and technical requirements. Contact sales for a tailored offer.
Technical parameters
- Voltage: 48.0 V
- Line resistance: 2.5 Ω
- Line inductance: 1.3 mH
- No-load speed: 2880 rpm
- No-load current: 0.15 A
- Stall torque: 3.0 N·m
- Stall current: 19.2 A
- Nominal torque: 0.5 N·m
- Nominal speed: 2125 rpm
- Nominal current: 3.1 A
- Max. output power: 223 W
- Max. efficiency: 86 %
- Back-EMF constant: 16.5 mV/rpm
- Torque constant: 0.15 Nm/A
- KV value: 60 rpm/V
- Speed/torque gradient: 974 rpm/Nm
- Rotor inertia: 61 g·cm^2
- Weight: 138 g
Specifications
- Model: BS5016NFL
- Diameter: 50 mm
- Length: 23.5 mm
- Rated voltage: 48 V
- No-load speed: 2880 rpm
- Nominal speed: 2125 rpm
- Max. output power: 223 W
- Nominal torque: 0.5 N·m
- Stall torque: 3.0 N·m
- No-load current: 0.15 A
- Nominal current: 3.1 A
- Stall current: 19.2 A
- Line resistance: 2.5 Ω
- Line inductance: 1.3 mH
- Back-EMF constant: 16.5 mV/rpm
- Torque constant: 0.15 Nm/A
- KV: 60 rpm/V
- Speed/torque gradient: 974 rpm/Nm
- Rotor inertia: 61 g·cm^2
- Weight: 138 g
Catalogs
No catalogs are available for this product.
See all of Constar Motion Co., LTD‘s catalogsOther Constar Motion Co., LTD products

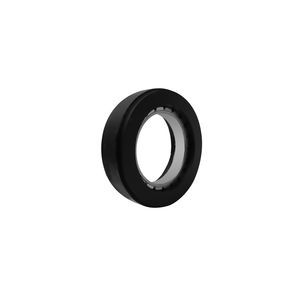

Brushless Frameless Torque Motor
