Brushless motor BS6008NFLDCBLDC48 V
Add to favorites
Compare this product
Characteristics
- Type
- DC, brushless, BLDC
- Voltage
- 48 V
- Applications
- for robotics, for collaborative robots, for humanoid robot
- Other characteristics
- with brushless DC motor
- Power
900 W
(1.22 hp)- Torque
0.44 Nm
(0.324527 ft.lb)- Rotational speed
5,380 rpm, 6,560 rpm
(33,803.537 rad.min-1, 41,217.6956 rad.min-1)- Diameter
60 mm
(2.36 in)
Description
Overview

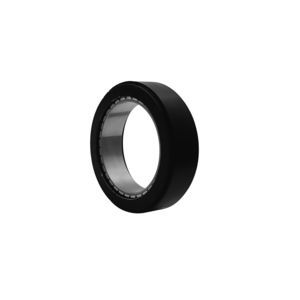

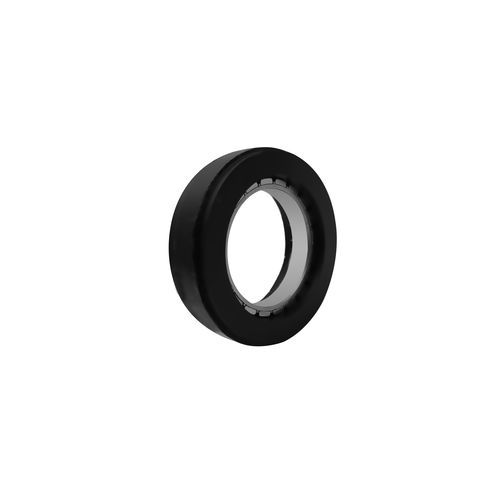

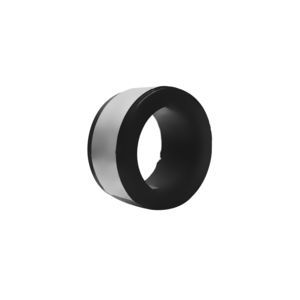

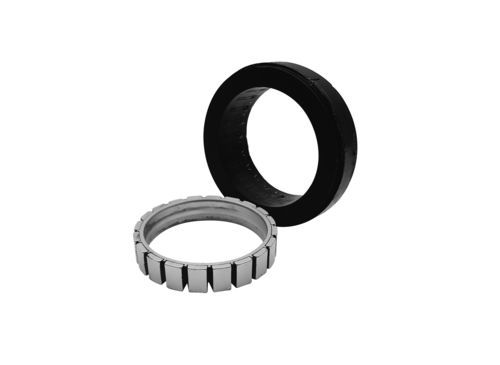

Brushless DC motor BS6008NFL with 60 mm diameter and 16.5 mm length. Rated voltage 48 V; maximum output power 900 W; nominal speed 5380 rpm; nominal torque 0.44 N·m. Weight 119 g. Designed for compact actuation in robotic systems.
Applications
Customizable options
Additional information
Unit price: Quote based on customer quantity and solution requirements
Technical specifications
Brushless DC motor BS6008NFL with 60 mm diameter and 16.5 mm length. Rated voltage 48 V; maximum output power 900 W; nominal speed 5380 rpm; nominal torque 0.44 N·m. Weight 119 g. Designed for compact actuation in robotic systems.
Applications
- Collaborative robots
- Mechanical arm
- Humanoid robot
Customizable options
- Specifications
- Wire length
- Performance
- Gearbox
Additional information
Unit price: Quote based on customer quantity and solution requirements
Technical specifications
- Voltage: 48.0 V
- Line resistance: 0.62 Ω
- Line inductance: 0.26 mH
- No-load speed: 6560 rpm
- No-load current: 0.3 A
- Stall torque: 5.3 N.m
- Stall current: 77.4 A
- Nominal torque: 0.44 N.m
- Nominal speed: 5380 rpm
- Nominal current: 6.1 A
- Max. output power: 900 W
- Max. efficiency: 86 %
- Back-EMF constant: 7.3 mV/rpm
- Torque constant: 0.068 Nm/A
- KV Value: 136.7 rpm/V
- Speed/torque gradient: 1244 rpm/Nm
- Rotor inertia: 81 g·cm^2
- Weight: 119 g
