ventilation unit
Marine Ventilator Series

Add to MyDirectIndustry favorites

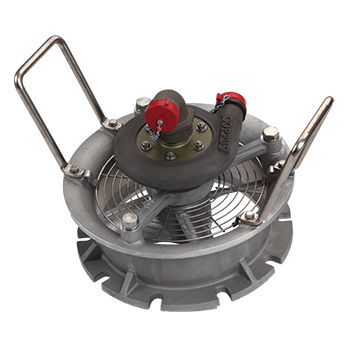

ventilation unit ventilation unit - Marine Ventilator Series
{{requestButtons}}

Characteristics

  • Air flow:

    Min.: 4,600 ft³/min (130.26 m³/min)

    Max.: 7,400 ft³/min (209.54 m³/min)

Description

These rugged, dependable cargo tank ventilators have served the shipping industry for many years. They are ideal for on-board gas-freeing, drying and ventilation operations and are available in supply or exhaust models.



STEAM/COMPRESSED AIR TURBINE-DRIVE MODELS FEATURES & ADVANTAGES:
Cast iron turbine housing with aluminum cover
Bronze turbine wheel
Grease-type ball bearings
Cast aluminum fan and fan casing
Stainless steel fasteners, mounting studs and protective screen
Delivers 5,350 cfm (9,090 m3/hr) Supply (C-12A)
Delivers 4,600 cfm (7,815 m3/hr) Exhaust (C-12A)
Delivers 8,400 cfm (14,275 m3/hr) Supply (C-15A)
Delivers 6,500 cfm (11,044 m3/hr) Exhaust (C-15A)


WATER TURBINE-DRIVE MODELS FEATURES & ADVANTAGES:
Cast aluminum anodized turbine housing
Cast aluminum anodized impeller
Cast aluminum inlet and outlet water connections
Grease-sealed stainless steel ball bearings
Cast aluminum fan and fan casing
Stainless steel fasteners and protective screen
Delivers 5,000 cfm (8,495 m3/hr) Supply (C-12A)
Delivers 4,700 cfm (7,985 m3/hr) Exhaust (C-12A)
Delivers 7,400 cfm (12,573 m3/hr) Supply (C-15A)
Delivers 5,700 cfm (9,769 m3/hr) Exhaust (C-15A)
