RF connector 95-000-99
LCcrimpcomposite

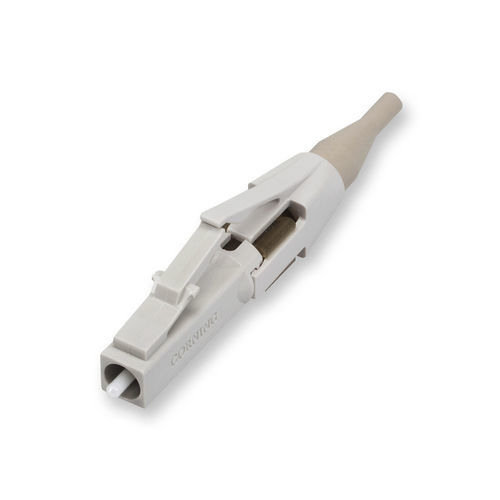

RF connector - 95-000-99 - CORNING - LC / crimp / composite
RF connector - 95-000-99 - CORNING - LC / crimp / composite
RF connector - 95-000-99 - CORNING - LC / crimp / composite - image - 2
Add to favorites
Compare this product

Characteristics

Type
RF
Format
LC
Connection type
crimp
Material
composite
Product applications
housing, cable, package
Domain
fast, optical
Operating temperature

Max.: 75 °C
(167 °F)

Min.: -40 °C
(-40 °F)

Description

UniCam® Connector, LC 62.5 µm multimode (OM1) Fiber Category - 62.5 µm MM (OM1) Product Type - Field-Installable Connectors Corning Logo - Yes Keyed (security) - No Technology - No-Epoxy/No-Polish RoHS - Free of hazardous substances according to RoHS 2011/65/EU Connector Type - LC Housing Color - Beige Boot Color - Beige Ferrule Material - Ceramic Pinned - No Nominal Fiber Outer Diameter - 125 µm Tensile Strength Jacketed Cable - 50 N (11.24 lbf) Durability - ≤ 0.2 dB change, 500 rematings, FOTP-21 Tensile Strength 900 µm Cable - 4.9 N (1.1 lb) change ≤ 0.2 dB, FOTP-6 Polish - UPC Insertion Loss, Max. - 0.5 dB Insertion Loss, Typical - 0.1 dB Packaging - Individual Pack Package Contents - "Connector, Trigger, Crimp Band, Boot (900 µm), Boot (3.0 mm), Boot (2.0 mm)" Performance guaranteed 100 percent yield guarantee Broad operating temperature range (-40°C to +75°C) Utility and flexibility Factory-polished end face Consistent optical performance Fast termination and no consumables Low installation cost Minimum insertion loss Optimum optical performance
