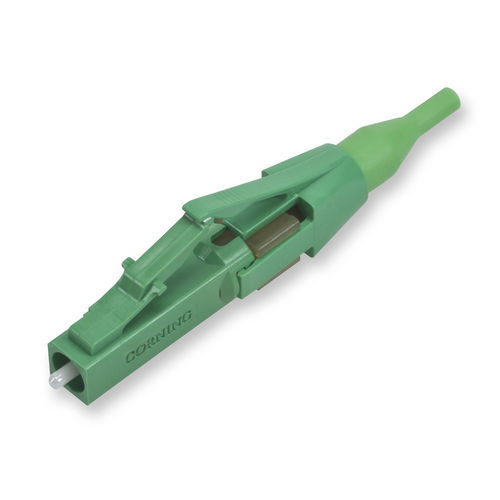

UniCam® Connector, LC Single-mode (OS2), APC
Fiber Category - Single-mode (OS2)
Product Type - Field-Installable Connectors
Corning Logo - Yes
Keyed (security) - No
Technology - No-Epoxy/No-Polish
RoHS - Free of hazardous substances according to RoHS 2011/65/EU
Connector Type - LC
Housing Color - Green
Boot Color - Green
Ferrule Material - Ceramic
Pinned - No
Nominal Fiber Outer Diameter - 125 µm
Durability - ≤ 0.2 dB change, 500 rematings, FOTP-21
Polish - APC
Insertion Loss, Max. - 0.75 dB
Reflectance - < -55 dB
Insertion Loss, Typical - 0.4 dB
Packaging - Individual Pack
Package Contents - "Connector, trigger, crimp band, boot (900 µm), boot (3.0 mm), boot (2.0 mm)"
Performance guaranteed
100 percent yield guarantee
Broad operating temperature range (-40°C to +75°C)
Utility and flexibility
Factory-polished end face
Consistent optical performance
Fast termination and no consumables
Low installation cost
Minimum insertion loss
Optimum optical performance
